6 – ASUS GTX 570 DirectCU II Power Consumption and Overclocking

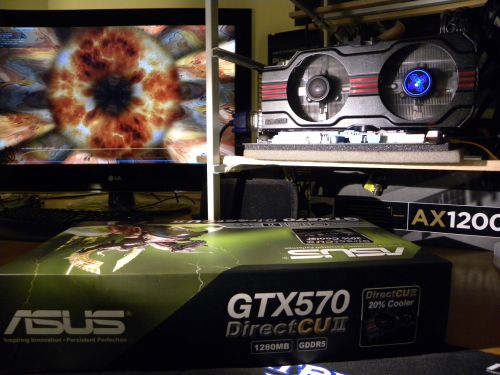

ASUS GTX 570 DirectCU II stressed by FurMark 1.9.0
For the power consumption and overclocking test, I used FurMark 1.9.0 (finished now, will be released in few days released!).
The total power consumption of the testbed at idle with the GTX 570 is 120W.
The GPU temperature at idle is 32°C.
With default settings (GPU @ 742MHz, Vcore @ 0.950V), the total power consumption of the testbed stressed by FurMark (FurMark settings: 1920×1080, fullscreen, Burn-in mode, dynamic background, no AA, no postfx) is 384W with a max GPU temperature of 75°C.
P = (384-120) * 0.9
P = 237 watts
where 0.9 is the PSU efficiency factor. For the Corsair AX1200 PSU, this factor is around 0.9 (see this article, there is a graph of the AX1200 efficiency).

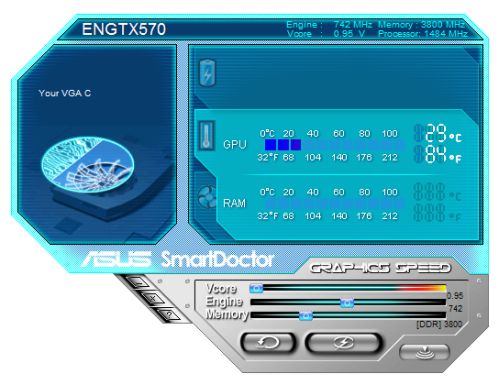

To overclock the GTX 570, I used ASUS’s SmartDoctor for setting both GPU core clock and GPU voltage.
As you know, GTX 500 cards have a hardware power limiter (mixed with a black list of stress test applications…). But the good news, is that ASUS has disabled this hardware power limiter on its GTX 500 DirectCU II series. How can you quickly test the presence of the power limiter? Simple, just benchmark your card with FurMark 1.8.2 (1980×1080 fullscreen, 60 seconds, no AA, no PostFX). Why FurMark 1.8.2? Because this tool is black listed in NVIDIA drivers.
The GTX 570 has the similar performance than the GTX 480. On my test bench, a GTX 480 has 6478 points (or 108 FPS) in FurMark 1.8.2 test and the GTX 570 DC2 has 6499 points (108 FPS). Then the power limiter is disabled. What’s more another clue you can use is the power consumption. A GTX 570 (with default clocks) stressed by FurMark has a power consumption of around 230W.
With auto fan speed, the max stable OC settings I found for the GTX 570 DC2 under FurMark 1.9.0 are: {GPU: 810MHz ; VDDC: 0.963V}. With these settings, the power consumption of the test bench is 410W while the GPU temperature reached 78°C.
410W for the test bench means the power draw of the GTX 570 DC alone is: (410-120)*0.9 = 261W.
Can we reach higher GPU clock speed under FurMark 1.9.0? Yes, by setting the fan speed to 90%. In this situation, the DirectCU II cooler is noisy but the GPU is perfectly cooled.
Then with a fan speed of 90%, I managed to stress test the GTX 570 DC with FurMark 1.9.0 with this OC setting: {GPU: 843MHz ; VDDC: 1.013V}. With this high OC setting, the power consumption of the testbed was 450W but thanks to the high fan speed, the GPU temperature didn’t exceed 69°C. A high fan speed allows also a better VRMs cooling. That’s why the GTX 570 was stable.
450W for the test bench means the power draw of the GTX 570 DC alone is: (450-120)*0.9 = 297W…

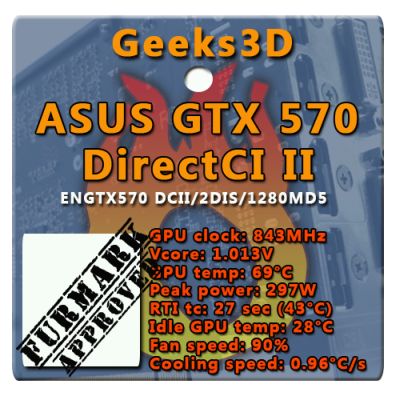

This OC setting deserves another badge:
Okay, let’s see now with normal applications. With the auto fan speed, the card was stable under 3DMark11, Unigine Heaven 2.1 and MAFIA 2 with the following OC setting:
{GPU: 921MHz ; VDDC: 1.088V}.
Here are the scores:
- 3DMark11: P6033
- Unigine Heaven (DX11, 1920×1080 fullscreen, tessellation normal, 4X MSAA, 16X aniso): FPS: 47.6, Scores: 1199
- MAFIA 2 (benchmark settings: high): 106.1 FPS
And here are the sames test with default clock speeds:
- 3DMark11: P5253
- Unigine Heaven (DX11, 1920×1080 fullscreen, tessellation normal, 4X MSAA, 16X aniso): FPS: 41.6, Scores: 1048
- MAFIA 2 (benchmark settings: high): 71.0 FPS
Nice overclocking!
Here is a comparative table of the power consumption of the card ALONE (not the total power consumption of the system):
Power: 378W – EVGA GTX 580 SC (core: 870MHz, Vcore:1.125V) – OC settings |
| Power: 330W – ASUS ENGTX580 (core: 871MHz, Vcore:1.088V) – OC settings |
| Power: 324W – EVGA GTX 580 SC (core: 797MHz, Vcore:1.082V – default settings) |
Power: 298W – ASUS Radeon HD 6950 (core: 840MHz, Vcore: 1.300V) – OC settings |
| Power: 290W – ASUS ENGTX580 (default settings) |
| Power: 276W – SAPPHIRE Radeon HD 6970 (core: 940MHz, Vcore: 1.175V) – OC settings |
| Power: 272W – ASUS Radeon HD 6950 DirectCU II (core: 950MHz, Vcore: 1.150V) |
| Power: 272W – EVGA GTX 480 |
| Power: 260W – SAPPHIRE Radeon HD 6970 (core: 880MHz, Vcore: 1.175V) |
| Power: 237W – ASUS ENGTX570 DirectCU II (core: 742MHz, Vcore:0.950V) |
| Power: 225W – ASUS ENGTX560 Ti DirectCU II TOP (core: 900MHz, Vcore:1.025V) |
| Power: 220W – SAPPHIRE Radeon HD 6870 (core: 1000MHz, Vcore: 1.300V) – OC settings |
| Power: 204W – ASUS Radeon HD 6950 DirectCU II (core: 810MHz, Vcore: 1.100V) |
| Power: 197W – ASUS Radeon HD 6950 (core: 810MHz, Vcore: 1.100V) |
| Power: 185W – ATI Radeon HD 5870 |
| Power: 155W – SAPPHIRE Radeon HD 6870 (core: 900MHz, Vcore: 1.175V) |
| Power: 147W – ASUS EAH6870 |
| Power: 135W – MSI N460GTX Cyclone 768D5 OC |
| Power: 81W – ASUS GeForce GT 440 @ 823MHz |
