GL-Z 0.5.0 released, Raspberry Pi CPU and GPU Monitoring Improved (Updated: 0.5.0.1 for Linux with GLIBC 2.23)

2019/10/04 JeGX

GL-Z on Raspberry Pi 4 - CPU and GPU monitoring utility

1 – Release Notes

A new version of GL-Z is available for Windows 64-bit, Linux 64-bit and Raspberry Pi (for Raspbian Buster only). GL-Z is a CPU / GPU monitoring and OpenGL / Vulkan information utility made with GeeXLab.

This new version of GL-Z improves the CPU and GPU monitoring support especially on Raspberry Pi platform. And now, the CPU / GPU monitoring is the default mode when GL-Z is launched. If you want to display all data, you have to use the GLZ_all.{bat|sh} script.

GL-Z on Windows 10 + Intel Core i7 8700K + NVIDIA GeForce GPUs:
GL-Z on Windows + Intel CPU + NVIDIA GeForce - CPU and GPU monitoring

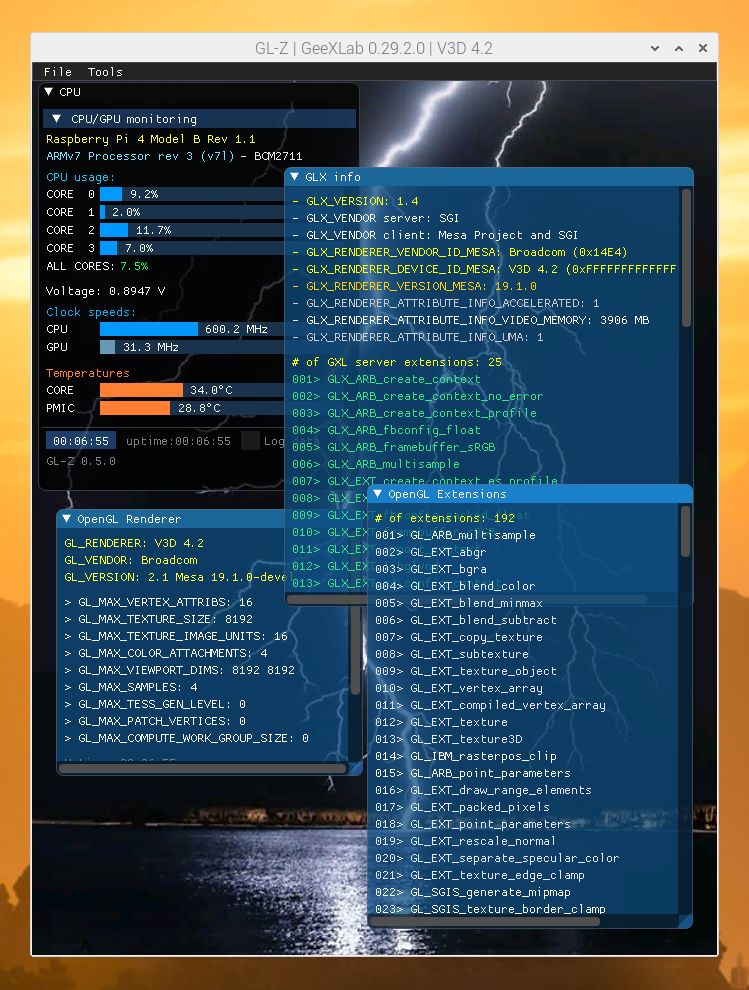

GL-Z on Raspberry Pi 4 (Raspbian Buster):
GL-Z on Raspberry Pi 4 - CPU and GPU monitoring

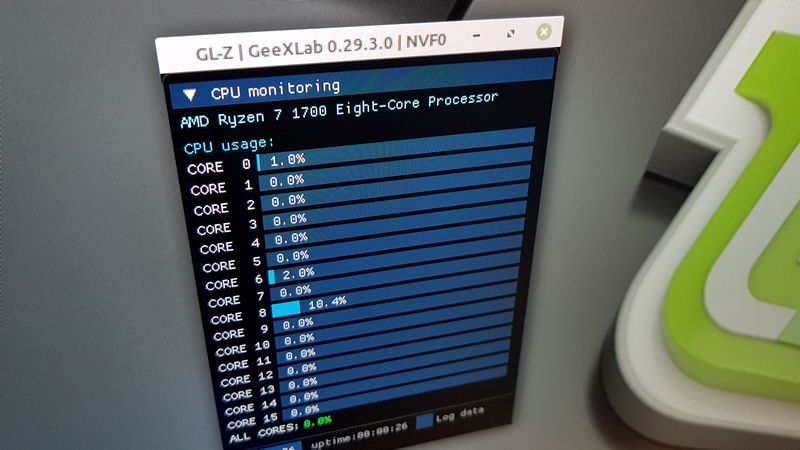

GL-Z on Linux Mint 19.2 + AMD RyZen 7 1700 CPU:
GL-Z on Linux + AMD RyZen 7 1700 CPU - CPU monitoring

2 – Changelog

Version 0.5.0.1 - 2019/11/27
- Linux: updated with GLIBC 2.23 support + GeeXLab GeeXLab 0.29.7.


Version 0.5.0 - 2019/10/04
- Raspberry Pi: added monitoring of CPU and GPU clock speeds, voltage and temperatures.
- all platforms: updated the CPU and GPU monitoring. The OpenGL memory load has been added
  to the monitoring section.
- updated the csv file export
- updated with latest GeeXLab 0.29.3 / 0.29.2 versions.

31 thoughts on “GL-Z 0.5.0 released, Raspberry Pi CPU and GPU Monitoring Improved (Updated: 0.5.0.1 for Linux with GLIBC 2.23)”

djordje 2019/10/21 at 17:53

How to start this on Ubuntu ?
1. JeGX Post Author2019/10/21 at 18:17

  Download the zip file for Linux 64-bit, unzip it where you want and double click on GLZ. If you have a recent version of Linux Ubuntu (with GLIBC 2.27), it should run. You can also start GLZ in command line using GLZ_all.sh.
djordje 2019/10/21 at 18:37

I tired that. I got massage
delevic@rig:~/Downloads/GLZ_0.5.0_linux64$ ./GLZ_all.sh
./GLZ: /lib/x86_64-linux-gnu/libm.so.6: version `GLIBC_2.27′ not found (required by /home/delevic/Downloads/GLZ_0.5.0_linux64/dylibs/libgxc_r_linux_x64.so)
djordje 2019/10/21 at 18:38

Ubuntu 16.04
djordje 2019/10/21 at 18:40

I will try to install GLIBC_2.27
1. JeGX Post Author2019/10/21 at 18:53

  Ok, let me know if you manage to install GLIBC 2.27 and run GLZ on ubuntu 16.04.
djordje 2019/10/22 at 20:55

I thing 2.23 is max for 16.04. Do you have any version with glibc 2.23 ?
1. JeGX Post Author2019/10/23 at 13:48

  I have no version with glibc 2.23. I must say that glibc is an annoying issue with Linux. I zipped the glibc 2.27 of mint 19.2, you can try it (try to put the so files in glz/dylibs/ folder. Maybe you will have to update the rpath of some dylibs…):
  https://www.swisstransfer.com/d/719a663b-0399-42dc-b7d7-f8a95afd7cdd
  1. JeGX Post Author2019/10/23 at 13:58

    I will try again to force GeeXLab core libs to use older versions of gclib. I did that years ago and it worked fine but the last time I tried, I spent (wasted is better) hours without success…
djordje 2019/11/12 at 19:54

I installed ubuntu 18.04. GeeXlab starts, but it doesnt see nvidia gpu p106-100, only two amd rx 580. But only that.Take a look:
https://flic.kr/p/2hJTMcQ
djordje 2019/11/12 at 19:56

I can get readings form amd driver like you can see on picture.
klaus 2019/11/25 at 18:44

NO Raspberry PI 64bit !?! arm64 ….
1. JeGX Post Author2019/11/27 at 15:58

  Raspbian is 32-bit, GL-Z is for Raspbian => GL-Z is 32-bit
  Ask the Raspberry Pi Foundation to release a 64-bit version of Raspbian.
dave 2020/01/13 at 04:45

Hi.
I got this running OK on Ubuntu LTS, but I don’t get the GPU usage for my AMD card. The card is recognized, but the usage and temps are at 0 all the time.
It seems that is looking for the proprietary driver if I’m not mistaken, and I’m using (like everybody else with an AMD card) the open source ones.
“sh: 1: aticonfig: not found
cat: /proc/ati/0/biosversion: No such file or directory”
Other than that everything seems OK. is this tool only meant for the AMD proprietary driver?
1. dave 2020/01/13 at 05:20

  Still me, (replying to myself)
  Here is some data/logs:
  https://pastebin.com/hv2gQvve
  https://pastebin.com/5WLVP7Cz
2. JeGX Post Author2020/01/13 at 09:44

  I coded the GPU monitoring for Radeon on Linux long time ago and I think it’s only for AMD proprietary driver. But if there is a way to read GPU temp + usage with open source driver (links?), I will add it…
dave 2020/01/19 at 10:18

What I usually do is read the “amdgpu_pm_info” file:
sudo cat /sys/kernel/debug/dri/0/amdgpu_pm_info | grep -E “Temperature|Load”
Which will show: https://imgur.com/H9I64ny

In case the image is not available, the output is:
GPU Temperature: 41 C
GPU Load: 82 %

As for the proper documentation I must confess I’m not sure where exactly you’ll find that. The above method is what you can usually find on various Linux forums/wiki etc, such as:
https://wiki.archlinux.org/index.php/AMDGPU#CLI_(default)

I tried to post various apps that monitor the GPU on Linux+Mesa drivers (maybe you could examine the source code) but
they were apparently seen as spam.
1. JeGX Post Author2020/01/19 at 13:59

  I started a prototype that monitors AMD GPU on Linux using DRM:

  I will post the binaries on the HackLab as soon as possible so you’ll be able to test it.

  I will also check the /sys/kernel/debug/dri/0/amdgpu_pm_info file …
djordje 2020/01/26 at 23:00

Excellent. I am waiting for binaries. Until then I am using watch cat /sys/kernel/debug/dri/0-n/amdgpu_pm_info
djordje 2020/01/26 at 23:39

I am using DRM for overclocking.
1. JeGX Post Author2020/02/13 at 17:05

  I posted the proto here: https://www.geeks3d.com/20200213/radeon-gpu-monitoring-on-linux-using-drm/
Taz 2020/04/04 at 23:51

Greetings JeGX,
I’m new to Raspberry pi and have been looking far and wide for something as simple and efficient as this monitoring app to help me in my tweaking of my RPi.
I’ve overclocked my CPU, voltage, and GPU. I was wonder if the GPU is set in your app to a max value?
The reason I ask is because GPU is the only bar that does not move when values change.
Is there anyway, you could mod this brilliant app to graph (value over time)?
Looking forward to your positive reply
Jeff Hochberg 2020/04/21 at 19:34

I’m trying to run GL-Z on a system running Ubuntu MATE 18.04.4 and getting “Permission Denied” any time I try to launch the application. I’ve tried to launch it via GLZ_all.sh (ran chmod +x to make it executable) in the context of my user account, via sudo, and via root. I get the same result no matter what I try.

I also tried just launching it by double-clicking GLZ from within Caja (desktop manager). That action causes a window to pop-up that says “There is no application installed for executables. Do you want to search for an application to open this file?”. I selected “Yes” and the system was unable to find anything to help with running it.

Any ideas?
Jeff Hochberg 2020/04/21 at 19:45

FYI – I just tried on traditional Ubuntu Desktop 18.04 and it works fine so there’s obviously something different about the Ubuntu MATE 18.04.
1. JeGX Post Author2020/04/21 at 21:11

  Curious, I developed GL-Z on Linux Mint MATE 18.3 / 19.3 and it worked fine.
  Did you try to launch GL-Z directly from the command line? Maybe there is a problem with file attributes…
Jeff Hochberg 2020/04/22 at 03:51

Interestingly enough, I downloaded GL-Z to another hard drive in my desktop that was mounted as /media/sdc which my account supposedly has full permissions to. I ran ‘chown -R username:groupname /media/sdc/’ after I repartitioned the drive yesterday.

I just copied the GL-Z tarball back to /home/username/Downloads, then untarred it and it runs without any issues at all! Maybe I fubarred the permissions somehow???

It’s OK – I’m getting ready to rebuild this machine anyway. Having some issues with VMware Workstation Pro and their support team is freaking out that I’m running MATE instead of traditional Ubuntu Desktop, so I’m going to rebuild on Ubuntu Desktop 18.04.4 and then prove to them that one has nothing to do with the other. 🙂

Thanks for getting back to me so quickly!
Philippe 2020/07/10 at 00:08

Hello,

I love your tool to monitor my W10 PC.
Would it be possible to have the exact same tool to monitor my two Raspberry Pis but ON THE SCREEN of my W10 PC.
In other words a cross platform monitoring tool for all the computers of various OS on a network displayed on a windows 10 PC ?

Thanks, and keep up the good work !

Philippe
Cliff Wofe 2020/08/15 at 18:01

Hi
I am a Raspberry Pi newbie and I am trying to run your cpu monitor, but I guess I don’t know how. Is there a site or place I can go to get help with this ? Or is there some prequisite I am missing ?

Thanks
Cliff
1. JeGX Post Author2020/08/16 at 15:49

  Hi Cliff,
  what is your problem exactly?

  Quick help: GL-Z for Raspberry Pi requires two things:
  – Raspbian Buster or Raspberry Pi OS (for GLIBC 2.28 available on both OSes).
  – OpenGL 2.1 support: you have to enable OpenGL for desktop in raspi-config utility (Advanced settings > GL driver)
  1. Cliff Wofe 2020/08/16 at 22:31

    Hi Thanks for help, I am trying to run GLZ CPU Mnitor

    I believe I have Raspbian Buster
    pi@raspberrypi:~ $ cat /etc/os-release
    PRETTY_NAME=”Raspbian GNU/Linux 10 (buster)”
    NAME=”Raspbian GNU/Linux”
    VERSION_ID=”10″
    VERSION=”10 (buster)”
    VERSION_CODENAME=buster
    ID=raspbian
    ID_LIKE=debian
    HOME_URL=”http://www.raspbian.org/”
    SUPPORT_URL=”http://www.raspbian.org/RaspbianForums”
    BUG_REPORT_URL=”http://www.raspbian.org/RaspbianBugs”

    And I opened terminal window and did “sudo raspi-config

    but when I goto advanced options GL Driver
    I get this

    G1 Legacy Original non-GL desktop driver
    G2 GL (Fake KMS) OpenGL desktop driver with fake KMS

    I chose G2 and then finish and it reboots.

    Then I try to execute GLZ and nothing

    I hate to bother you, but is there something or somewhere I need to go to learn a little more on all of this. I guess I know enough to be dangerous.

    Thanks for your help
    cliff
  2. Heitor 2020/08/28 at 23:18

    thanks. forgot about OpenGL
    now working on Pi 3 b+ buster
