(Tested) OpenGL Geometry Instancing: GeForce GTX 480 vs Radeon HD 5870

2010/06/29 JeGX

Article Index

4 – Geometry Instancing Tests

Testbed:
– CPU: Intel Core i7 960 @ 3GHz
– RAM: 4GB DDR3 Corsair Dominator 1600MHz
– Mobo: Gigabyte GA-X58A-UD5
– PSU: Antec TPQ 850W
– OS: Windows 7 64-bit
– GeForce driver: R257.21
– Radeon driver: Catalyst 10.6

Graphics cards:
– EVGA GTX 480
– Radeon HD 5870 reference board

For each test, I read the GPU usage with EVGA Precision and the CPU usage with Windows task manager:

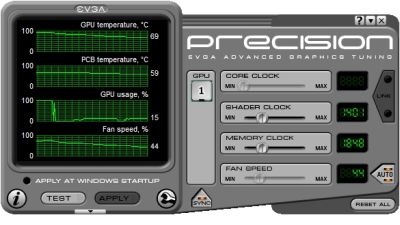

EVGA Precision

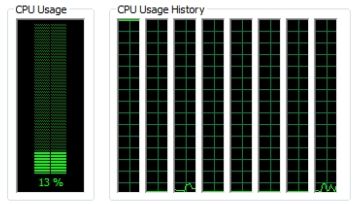

Windows task manager
12% or 13% means one logical CPU core is fully used.

Here are the results (default resolution: 1024×600 and default camera position):

20,000 instances x 18 tri/instance = 360,000 tri

Radeon HD 5870:
– F2: FPS=43, GPU=68%, CPU=12%
– F3: FPS=55, GPU=88%, CPU=12%
– F4: FPS=45, GPU=25%, CPU=12%
– F5: FPS=134, GPU=22%, CPU=12%
– F6: FPS=139, GPU=24%, CPU=12%
GeForce GTX 480:
– F2: FPS=31, GPU=36%, CPU=12%
– F3: FPS=48, GPU=56%, CPU=12%
– F4: FPS=117, GPU=22%, CPU=12%
– F5: FPS=150, GPU=34%, CPU=12%
– F6: FPS=164, GPU=40%, CPU=12%

20,000 instances, 72 tri/instance = 1,440,000 tri

Radeon HD 5870:
– F2: FPS=42, GPU=67%, CPU=12%
– F3: FPS=55, GPU=87%, CPU=12%
– F4: FPS=45, GPU=26%, CPU=12%
– F5: FPS=133, GPU=37%, CPU=12%
– F6: FPS=139, GPU=41%, CPU=12%
GeForce GTX 480:
– F2: FPS=32, GPU=21%, CPU=12%
– F3: FPS=48, GPU=33%, CPU=12%
– F4: FPS=117, GPU=22%, CPU=12%
– F5: FPS=150, GPU=37%, CPU=12%
– F6: FPS=163, GPU=44%, CPU=12%

20,000 instances, 450 tri/instance = 9,000,000 tri

Radeon HD 5870:
– F2: FPS=43, GPU=69%, CPU=12%
– F3: FPS=54, GPU=87%, CPU=12%
– F4: FPS=45, GPU=64%, CPU=12%
– F5: FPS=79, GPU=99%, CPU=12%
– F6: FPS=73, GPU=99%, CPU=12%
GeForce GTX 480:
– F2: FPS=31, GPU=53%, CPU=12%
– F3: FPS=44, GPU=99%, CPU=12%
– F4: FPS=113, GPU=99%, CPU=12%
– F5: FPS=114, GPU=99%, CPU=12%
– F6: FPS=112, GPU=99%, CPU=12%

20,000 instances, 800 tri/instance = 16,000,000 tri

Radeon HD 5870:
– F2: FPS=42, GPU=99%, CPU=12%
– F3: FPS=43, GPU=99%, CPU=12%
– F4: FPS=43, GPU=99%, CPU=12%
– F5: FPS=48, GPU=99%, CPU=12%
– F6: FPS=46, GPU=99%, CPU=12%
GeForce GTX 480:
– F2: FPS=31, GPU=56%, CPU=12%
– F3: FPS=42, GPU=99%, CPU=12%
– F4: FPS=66, GPU=99%, CPU=12%
– F5: FPS=67, GPU=99%, CPU=12%
– F6: FPS=66, GPU=99%, CPU=12%

20,000 instances, 1800 tri/instance = 36,000,000 tri

Radeon HD 5870:
– F2: FPS=22, GPU=99%, CPU=12%
– F3: FPS=22, GPU=99%, CPU=12%
– F4: FPS=22, GPU=99%, CPU=12%
– F5: FPS=22, GPU=99%, CPU=12%
– F6: FPS=22, GPU=99%, CPU=12%
GeForce GTX 480:
– F2: FPS=30, GPU=99%, CPU=12%
– F3: FPS=30, GPU=99%, CPU=9%
– F4: FPS=31, GPU=99%, CPU=12%
– F5: FPS=32, GPU=99%, CPU=12%
– F6: FPS=32, GPU=99%, CPU=12%

100,000 instances, 18 tri/instance = 1,800,000 tri

Radeon HD 5870:
– F2: FPS=9, GPU=67%, CPU=12%
– F3: FPS=12, GPU=85%, CPU=12%
– F4: FPS=10, GPU=23%, CPU=12%
– F5: FPS=33, GPU=21%, CPU=12%
– F6: FPS=37, GPU=20%, CPU=12%
GeForce GTX 480:
– F2: FPS=7, GPU=34%, CPU=12%
– F3: FPS=10, GPU=54%, CPU=12%
– F4: FPS=25, GPU=14%, CPU=12%
– F5: FPS=32, GPU=25%, CPU=12%
– F6: FPS=35, GPU=30%, CPU=12%

100,000 instances, 72 tri/instance = 7,200,000 tri

Radeon HD 5870:
– F2: FPS=9, GPU=67%, CPU=12%
– F3: FPS=12, GPU=85%, CPU=12%
– F4: FPS=10, GPU=24%, CPU=12%
– F5: FPS=33, GPU=35%, CPU=12%
– F6: FPS=37, GPU=41%, CPU=12%
GeForce GTX 480:
– F2: FPS=7, GPU=36%, CPU=12%
– F3: FPS=10, GPU=57%, CPU=12%
– F4: FPS=25, GPU=38%, CPU=12%
– F5: FPS=32, GPU=36%, CPU=12%
– F6: FPS=35, GPU=45%, CPU=12%

100,000 instances, 450 tri/instance = 45,000,000 tri

Radeon HD 5870:
– F2: FPS=9, GPU=69%, CPU=12%
– F3: FPS=12, GPU=90%, CPU=12%
– F4: FPS=10, GPU=65%, CPU=12%
– F5: FPS=17, GPU=99%, CPU=12%
– F6: FPS=16, GPU=99%, CPU=12%
GeForce GTX 480:
– F2: FPS=7, GPU=53%, CPU=12%
– F3: FPS=9, GPU=99%, CPU=12%
– F4: FPS=23, GPU=99%, CPU=12%
– F5: FPS=24, GPU=99%, CPU=10%
– F6: FPS=23, GPU=99%, CPU=8%

100,000 instances, 800 tri/instance = 80,000,000 tri

Radeon HD 5870:
– F2: FPS=9, GPU=99%, CPU=12%
– F3: FPS=9, GPU=99%, CPU=12%
– F4: FPS=9, GPU=99%, CPU=12%
– F5: FPS=10, GPU=99%, CPU=12%
– F6: FPS=10, GPU=99%, CPU=12%
GeForce GTX 480:
– F2: FPS=7, GPU=56%, CPU=12%
– F3: FPS=9, GPU=99%, CPU=12%
– F4: FPS=14, GPU=99%, CPU=7%
– F5: FPS=14, GPU=99%, CPU=7%
– F6: FPS=14, GPU=99%, CPU=6%

100,000 instances, 1800 tri/instance = 180,000,000 tri

Radeon HD 5870:
– F2: FPS=5, GPU=99%, CPU=8%
– F3: FPS=5, GPU=99%, CPU=8%
– F4: FPS=5, GPU=99%, CPU=8%
– F5: FPS=5, GPU=99%, CPU=12%
– F6: FPS=5, GPU usage: 99%, CPU=12%
GeForce GTX 480:
– F2: FPS=6, GPU=99%, CPU=12%
– F3: FPS=6, GPU=99%, CPU=9%
– F4: FPS=7, GPU=99%, CPU=4%
– F5: FPS=7, GPU=99%, CPU=3%
– F6: FPS=7, GPU=99%, CPU=4%
