Intel Graphics Driver 26.20.100.7158 Released (Vulkan 1.1.114 + 10th Gen GPU)


Intel logo


Intel has published a new graphics driver for its GPUs (Intel 6th, 7th, 8th, 9th and 10th Gen processors) on Windows 10. This new driver (version 26.20.100.7158) comes with the following new features and changes:

Launch driver for:

– eFootball Pro Evolution Soccer 2020*
– Greedfall
– 10th Gen Intel Core processors with UHD Graphics (“Comet Lake”)

Developer highlights

Enabled reporting support for the following OpenGL 4.6 SPIR-V extensions:
– SPV_KHR_shader_ballot
– SPV_KHR_shader_draw_parameters
– SPV_KHR_storage_buffer_storage_class
– SPV_KHR_subgroup_vote

Enabled the following Vulkan extensions:
– VK_EXT_fragment_shader_interlock
– VK_EXT_buffer_device address
– VK_EXT_separate_stencil_usage
– VK_KHR_uniform_buffer_standard_layout

Performance improvements:
– Performance optimizations for Age of Wonders: Planetfall
– OpenCL optimizations.
– More efficient content protection.

Key issues fixed:
NOTE: This driver contains stability and security improvements.
– Minor graphics anomalies may be observed in SolidWorks 2019*.
– Intermittent crashes or hangs may be observed in Stormworks: Build and Rescue, Madden NFL19, CRYENGINE 5.5 GameSDK and Mastercam.
– Scaling would use medium filter instead of bilinear filtering.
– Ghosting effect upon refresh rate change with panel self-refresh enabled.
– Inconsistent brightness when internal HDR panels are turned on.
– Windows Game Bar (Win+G) could not record in Call of Duty: Black Ops 3, Civilization VI and Path of Exile.
– When contrast enhancement is enabled in the video page, corruption could be observed in H.265/HEVC video playback.



Downloads


Quick test of this driver on an Intel Core i7-8700K (with an UHD 630 GPU):

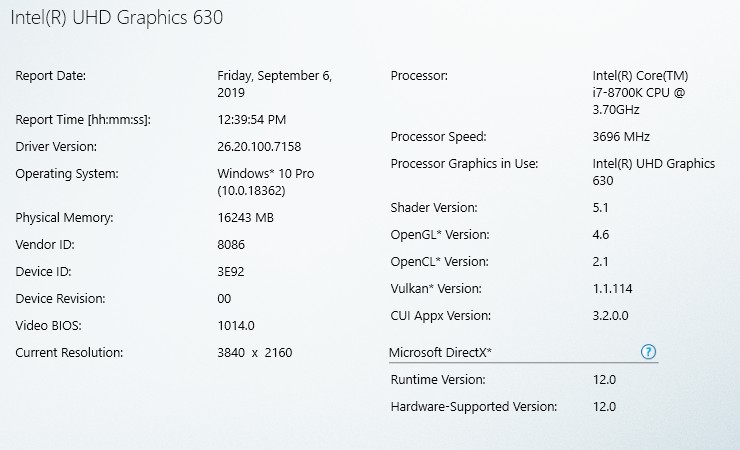

Intel UHD Graphics driver - software information

GL-Z: OpenGL and Vulkan information utility
GL-Z



OpenGL support

- GL_VENDOR: Intel
- GL_RENDERER: Intel(R) UHD Graphics 630
- GL_VERSION: 4.6.0 - Build 26.20.100.7158
- GL_SHADING_LANGUAGE_VERSION: 4.60 - Build 26.20.100.7158
- OpenGL extensions: 250 extensions (GL=230 and WGL=20)
- OpenGL SPIRV extensions: 4 extensions

Regular OpenGL extensions are the same than the ones in v6861.

Compared to previous v7000, this driver adds the following OpenGL/SPIRV extensions:

- SPV_KHR_shader_ballot
- SPV_KHR_shader_draw_parameters
- SPV_KHR_storage_buffer_storage_class
- SPV_KHR_subgroup_vote



Vulkan support

Intel v7158 exposes Vulkan 1.1.114. This new driver adds 7 new device extensions compared to previous v7000:

- VK_KHR_win32_keyed_mutex
- VK_KHR_imageless_framebuffer
- VK_KHR_uniform_buffer_standard_layout
- VK_EXT_separate_stencil_usage
- VK_EXT_fragment_shader_interlock
- VK_EXT_memory_budget
- VK_INTEL_performance_query

Here is the report from GPU Caps Viewer 1.42:

  - [Vulkan device 0]: Intel(R) UHD Graphics 630 ------------------
    - API version: 1.1.114
    - vendorID: 32902
    - deviceID: 16018
    - driver version: 1645558
  - memory heap count: 2
    - heap1: 4124MB
    - heap2: 4124MB
  - memory type count: 4
    - mem type 0 - heap index : 0 - property flag : 1
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
    - mem type 1 - heap index : 1 - property flag : 7
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_COHERENT_BIT
    - mem type 2 - heap index : 1 - property flag : 15
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_COHERENT_BIT
      > mem property: VK_MEMORY_PROPERTY_HOST_CACHED_BIT
    - mem type 3 - heap index : 1 - property flag : 1
      > mem property: VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
  - extensions: 56
    - VK_KHR_swapchain (version: 70)
    - VK_KHR_external_memory (version: 1)
    - VK_KHR_external_memory_win32 (version: 1)
    - VK_EXT_external_memory_host (version: 1)
    - VK_KHR_external_semaphore (version: 1)
    - VK_KHR_external_semaphore_win32 (version: 1)
    - VK_KHR_external_fence (version: 1)
    - VK_KHR_external_fence_win32 (version: 1)
    - VK_KHR_win32_keyed_mutex (version: 1)
    - VK_KHR_get_memory_requirements2 (version: 1)
    - VK_KHR_bind_memory2 (version: 1)
    - VK_KHR_dedicated_allocation (version: 1)
    - VK_KHR_sampler_mirror_clamp_to_edge (version: 1)
    - VK_KHR_maintenance1 (version: 1)
    - VK_KHR_maintenance2 (version: 1)
    - VK_KHR_maintenance3 (version: 1)
    - VK_KHR_shader_draw_parameters (version: 1)
    - VK_KHR_push_descriptor (version: 1)
    - VK_KHR_descriptor_update_template (version: 1)
    - VK_KHR_multiview (version: 1)
    - VK_KHR_shader_float16_int8 (version: 1)
    - VK_KHR_16bit_storage (version: 1)
    - VK_KHR_8bit_storage (version: 1)
    - VK_EXT_shader_subgroup_ballot (version: 1)
    - VK_EXT_shader_subgroup_vote (version: 1)
    - VK_KHR_storage_buffer_storage_class (version: 1)
    - VK_KHR_variable_pointers (version: 1)
    - VK_KHR_relaxed_block_layout (version: 1)
    - VK_EXT_sampler_filter_minmax (version: 1)
    - VK_KHR_device_group (version: 1)
    - VK_KHR_sampler_ycbcr_conversion (version: 1)
    - VK_EXT_post_depth_coverage (version: 1)
    - VK_EXT_shader_viewport_index_layer (version: 1)
    - VK_EXT_shader_stencil_export (version: 1)
    - VK_EXT_conservative_rasterization (version: 1)
    - VK_EXT_sample_locations (version: 1)
    - VK_KHR_draw_indirect_count (version: 1)
    - VK_KHR_image_format_list (version: 1)
    - VK_EXT_vertex_attribute_divisor (version: 3)
    - VK_EXT_descriptor_indexing (version: 2)
    - VK_EXT_inline_uniform_block (version: 1)
    - VK_KHR_create_renderpass2 (version: 1)
    - VK_KHR_swapchain_mutable_format (version: 1)
    - VK_KHR_driver_properties (version: 1)
    - VK_KHR_vulkan_memory_model (version: 3)
    - VK_EXT_conditional_rendering (version: 1)
    - VK_EXT_depth_clip_enable (version: 1)
    - VK_EXT_scalar_block_layout (version: 1)
    - VK_KHR_imageless_framebuffer (version: 1)
    - VK_EXT_buffer_device_address (version: 2)
    - VK_EXT_host_query_reset (version: 1)
    - VK_KHR_uniform_buffer_standard_layout (version: 1)
    - VK_EXT_separate_stencil_usage (version: 1)
    - VK_EXT_fragment_shader_interlock (version: 1)
    - VK_EXT_memory_budget (version: 1)
    - VK_INTEL_performance_query (version: 1)
  - device layers: 0
  - device features:
    - robustBufferAccess: true
    - fullDrawIndexUint32: true
    - imageCubeArray: true
    - independentBlend: true
    - geometryShader: true
    - tessellationShader: true
    - sampleRateShading: true
    - dualSrcBlend: true
    - logicOp: true
    - multiDrawIndirect: true
    - drawIndirectFirstInstance: true
    - depthClamp: true
    - depthBiasClamp: true
    - fillModeNonSolid: true
    - depthBounds: false
    - wideLines: true
    - largePoints: true
    - alphaToOne: true
    - multiViewport: true
    - samplerAnisotropy: true
    - textureCompressionETC2: true
    - textureCompressionASTC_LDR: true
    - textureCompressionBC: true
    - occlusionQueryPrecise: true
    - pipelineStatisticsQuery: true
    - vertexPipelineStoresAndAtomics: true
    - fragmentStoresAndAtomics: true
    - shaderTessellationAndGeometryPointSize: true
    - shaderImageGatherExtended: true
    - shaderStorageImageExtendedFormats: true
    - shaderStorageImageMultisample: true
    - shaderStorageImageReadWithoutFormat: false
    - shaderStorageImageWriteWithoutFormat: true
    - shaderUniformBufferArrayDynamicIndexing: true
    - shaderSampledImageArrayDynamicIndexing: true
    - shaderStorageBufferArrayDynamicIndexing: true
    - shaderStorageImageArrayDynamicIndexing: true
    - shaderClipDistance: true
    - shaderCullDistance: true
    - shaderFloat64: true
    - shaderInt64: true
    - shaderInt16: true
    - shaderResourceResidency: true
    - shaderResourceMinLod: false
    - sparseBinding: true
    - sparseResidencyBuffer: true
    - sparseResidencyImage2D: true
    - sparseResidencyImage3D: true
    - sparseResidency2Samples: true
    - sparseResidency4Samples: true
    - sparseResidency8Samples: true
    - sparseResidency16Samples: true
    - sparseResidencyAliased: true
    - variableMultisampleRate: true
    - inheritedQueries: true
  - device limits
    - maxImageDimension1D: 16384
    - maxImageDimension2D: 16384
    - maxImageDimension3D: 2048
    - maxImageDimensionCube: 16384
    - maxImageArrayLayers: 2048
    - maxTexelBufferElements: 134217728
    - maxUniformBufferRange: 65536
    - maxStorageBufferRange: 134217728
    - maxPushConstantsSize: 256
    - maxMemoryAllocationCount: 2111925
    - maxSamplerAllocationCount: 4000
    - bufferImageGranularity: 1
    - sparseAddressSpaceSize: 17592186044416
    - maxBoundDescriptorSets: 8
    - maxPerStageDescriptorSamplers: 64
    - maxPerStageDescriptorUniformBuffers: 200
    - maxPerStageDescriptorSampledImages: 200
    - maxPerStageDescriptorStorageImages: 16
    - maxPerStageDescriptorInputAttachments: 8
    - maxPerStageResources: 200
    - maxDescriptorSetSamplers: 576
    - maxDescriptorSetUniformBuffers: 1800
    - maxDescriptorSetUniformBuffersDynamic: 16
    - maxDescriptorSetStorageBuffers: 1800
    - maxDescriptorSetStorageBuffersDynamic: 16
    - maxDescriptorSetSampledImages: 1800
    - maxDescriptorSetStorageImages: 144
    - maxDescriptorSetInputAttachments: 8
    - maxVertexInputAttributes: 32
    - maxVertexInputBindings: 32
    - maxVertexInputAttributeOffset: 2047
    - maxVertexInputBindingStride: 4095
    - maxVertexOutputComponents: 128
    - maxTessellationGenerationLevel: 64
    - maxTessellationPatchSize: 32
    - maxTessellationControlPerVertexInputComponents: 128
    - maxTessellationControlPerVertexOutputComponents: 128
    - maxTessellationControlPerPatchOutputComponents: 120
    - maxTessellationControlTotalOutputComponents: 4096
    - maxTessellationEvaluationInputComponents: 128
    - maxTessellationEvaluationOutputComponents: 128
    - maxGeometryShaderInvocations: 32
    - maxGeometryInputComponents: 128
    - maxGeometryOutputComponents: 128
    - maxGeometryOutputVertices: 256
    - maxGeometryTotalOutputComponents: 1024
    - maxFragmentInputComponents: 128
    - maxFragmentOutputAttachments: 8
    - maxFragmentDualSrcAttachments: 1
    - maxFragmentCombinedOutputResources: 16
    - maxComputeSharedMemorySize: 32768
    - maxComputeWorkGroupCount: [65536; 65536; 65536]
    - maxComputeWorkGroupInvocations: 1024
    - maxComputeWorkGroupSize: [1024; 1024; 64]
    - subPixelPrecisionBits: 8
    - subTexelPrecisionBits: 8
    - mipmapPrecisionBits: 8
    - maxDrawIndexedIndexValue: 4294967295
    - maxDrawIndirectCount: 4294967295
    - maxSamplerLodBias: 16.000000
    - maxSamplerAnisotropy: 16.000000
    - maxViewports: 16
    - maxViewportDimensions: [32768; 32768]
    - viewportBoundsRange: [-65536.000000 ; 65535.000000]
    - viewportSubPixelBits: 8
    - minMemoryMapAlignment: 64
    - minTexelBufferOffsetAlignment: 16
    - minUniformBufferOffsetAlignment: 32
    - minStorageBufferOffsetAlignment: 16
    - minTexelOffset: 4294967288
    - maxTexelOffset: 7
    - minTexelGatherOffset: 4294967264
    - maxTexelGatherOffset: 31
    - minInterpolationOffset: -0.500000
    - maxInterpolationOffset: 0.437500
    - subPixelInterpolationOffsetBits: 4
    - maxFramebufferWidth: 16384
    - maxFramebufferHeight: 16384
    - maxFramebufferLayers: 2048
    - framebufferColorSampleCounts: 31
    - framebufferDepthSampleCounts: 31
    - framebufferStencilSampleCounts: 31
    - framebufferNoAttachmentsSampleCounts: 31
    - maxColorAttachments: 8
    - sampledImageColorSampleCounts: 31
    - sampledImageIntegerSampleCounts: 31
    - sampledImageDepthSampleCounts: 31
    - sampledImageStencilSampleCounts: 31
    - storageImageSampleCounts: 31
    - maxSampleMaskWords: 1
    - timestampComputeAndGraphics: 1
    - timestampPeriod: 83.333000
    - maxClipDistances: 8
    - maxCullDistances: 8
    - maxCombinedClipAndCullDistances: 8
    - discreteQueuePriorities: 2
    - pointSizeRange: [0.125000 ; 255.875000]
    - lineWidthRange: [0.000000 ; 7.992188]
    - pointSizeGranularity: 0.125000
    - lineWidthGranularity: 0.007813
    - strictLines: 0
    - standardSampleLocations: 1
    - optimalBufferCopyOffsetAlignment: 16
    - optimalBufferCopyRowPitchAlignment: 16
    - nonCoherentAtomSize: 1



OpenCL support

Intel v7158 exposes OpenCL 2.1 (CPU and GPU). Here is the report from GPU Caps Viewer:

- Num OpenCL platforms: 1
- CL_PLATFORM_NAME: Intel(R) OpenCL
- CL_PLATFORM_VENDOR: Intel(R) Corporation
- CL_PLATFORM_VERSION: OpenCL 2.1
- CL_PLATFORM_PROFILE: FULL_PROFILE
- Num devices: 2

  - CL_DEVICE_NAME: Intel(R) UHD Graphics 630
  - CL_DEVICE_VENDOR: Intel(R) Corporation
  - CL_DRIVER_VERSION: 26.20.100.7158
  - CL_DEVICE_PROFILE: FULL_PROFILE
  - CL_DEVICE_VERSION: OpenCL 2.1 NEO
  - CL_DEVICE_TYPE: GPU
  - CL_DEVICE_VENDOR_ID: 0x8086
  - CL_DEVICE_MAX_COMPUTE_UNITS: 24
  - CL_DEVICE_MAX_CLOCK_FREQUENCY: 1200MHz
  - CL_DEVICE_ADDRESS_BITS: 32
  - CL_DEVICE_MAX_MEM_ALLOC_SIZE: 838860KB
  - CL_DEVICE_GLOBAL_MEM_SIZE: 1638MB
  - CL_DEVICE_MAX_PARAMETER_SIZE: 1024
  - CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
  - CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 512KB
  - CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
  - CL_DEVICE_LOCAL_MEM_TYPE: Local (scratchpad)
  - CL_DEVICE_LOCAL_MEM_SIZE: 64KB
  - CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 838860KB
  - CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
  - CL_DEVICE_MAX_WORK_ITEM_SIZES: [256 ; 256 ; 256]
  - CL_DEVICE_MAX_WORK_GROUP_SIZE: 256
  - CL_EXEC_NATIVE_KERNEL: 14573556
  - CL_DEVICE_IMAGE_SUPPORT: YES
  - CL_DEVICE_MAX_READ_IMAGE_ARGS: 128
  - CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 128
  - CL_DEVICE_IMAGE2D_MAX_WIDTH: 16384
  - CL_DEVICE_IMAGE2D_MAX_HEIGHT: 16384
  - CL_DEVICE_IMAGE3D_MAX_WIDTH: 16384
  - CL_DEVICE_IMAGE3D_MAX_HEIGHT: 16384
  - CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
  - CL_DEVICE_MAX_SAMPLERS: 16
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 16
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 8
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 4
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 1
  - CL_DEVICE_EXTENSIONS: 44
  - Extensions:
    - cl_khr_3d_image_writes
    - cl_khr_byte_addressable_store
    - cl_khr_fp16
    - cl_khr_depth_images
    - cl_khr_global_int32_base_atomics
    - cl_khr_global_int32_extended_atomics
    - cl_khr_icd
    - cl_khr_image2d_from_buffer
    - cl_khr_local_int32_base_atomics
    - cl_khr_local_int32_extended_atomics
    - cl_intel_subgroups
    - cl_intel_required_subgroup_size
    - cl_intel_subgroups_short
    - cl_khr_spir
    - cl_intel_accelerator
    - cl_intel_media_block_io
    - cl_intel_driver_diagnostics
    - cl_khr_priority_hints
    - cl_khr_throttle_hints
    - cl_khr_create_command_queue
    - cl_khr_fp64
    - cl_khr_subgroups
    - cl_khr_il_program
    - cl_intel_spirv_device_side_avc_motion_estimation
    - cl_intel_spirv_media_block_io
    - cl_intel_spirv_subgroups
    - cl_khr_spirv_no_integer_wrap_decoration
    - cl_khr_mipmap_image
    - cl_khr_mipmap_image_writes
    - cl_intel_planar_yuv
    - cl_intel_packed_yuv
    - cl_intel_motion_estimation
    - cl_intel_device_side_avc_motion_estimation
    - cl_intel_advanced_motion_estimation
    - cl_khr_gl_sharing
    - cl_khr_gl_depth_images
    - cl_khr_gl_event
    - cl_khr_gl_msaa_sharing
    - cl_intel_dx9_media_sharing
    - cl_khr_dx9_media_sharing
    - cl_khr_d3d10_sharing
    - cl_khr_d3d11_sharing
    - cl_intel_d3d11_nv12_media_sharing
    - cl_intel_simultaneous_sharing

  - CL_DEVICE_NAME: Intel(R) Core(TM) i7-8700K CPU @ 3.70GHz
  - CL_DEVICE_VENDOR: Intel(R) Corporation
  - CL_DRIVER_VERSION: 7.6.0.0228
  - CL_DEVICE_PROFILE: FULL_PROFILE
  - CL_DEVICE_VERSION: OpenCL 2.1 (Build 0)
  - CL_DEVICE_TYPE: CPU
  - CL_DEVICE_VENDOR_ID: 0x8086
  - CL_DEVICE_MAX_COMPUTE_UNITS: 12
  - CL_DEVICE_MAX_CLOCK_FREQUENCY: 3700MHz
  - CL_DEVICE_ADDRESS_BITS: 32
  - CL_DEVICE_MAX_MEM_ALLOC_SIZE: 524256KB
  - CL_DEVICE_GLOBAL_MEM_SIZE: 511MB
  - CL_DEVICE_MAX_PARAMETER_SIZE: 3840
  - CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
  - CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 256KB
  - CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
  - CL_DEVICE_LOCAL_MEM_TYPE: Global
  - CL_DEVICE_LOCAL_MEM_SIZE: 32KB
  - CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 128KB
  - CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
  - CL_DEVICE_MAX_WORK_ITEM_SIZES: [8192 ; 8192 ; 8192]
  - CL_DEVICE_MAX_WORK_GROUP_SIZE: 8192
  - CL_EXEC_NATIVE_KERNEL: 14573552
  - CL_DEVICE_IMAGE_SUPPORT: YES
  - CL_DEVICE_MAX_READ_IMAGE_ARGS: 480
  - CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 480
  - CL_DEVICE_IMAGE2D_MAX_WIDTH: 16384
  - CL_DEVICE_IMAGE2D_MAX_HEIGHT: 16384
  - CL_DEVICE_IMAGE3D_MAX_WIDTH: 2048
  - CL_DEVICE_IMAGE3D_MAX_HEIGHT: 2048
  - CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
  - CL_DEVICE_MAX_SAMPLERS: 480
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 1
  - CL_DEVICE_EXTENSIONS: 13
  - Extensions:
    - cl_khr_icd
    - cl_khr_global_int32_base_atomics
    - cl_khr_global_int32_extended_atomics
    - cl_khr_local_int32_base_atomics
    - cl_khr_local_int32_extended_atomics
    - cl_khr_byte_addressable_store
    - cl_khr_depth_images
    - cl_khr_3d_image_writes
    - cl_intel_exec_by_local_thread
    - cl_khr_spir
    - cl_khr_fp64
    - cl_khr_image2d_from_buffer
    - cl_intel_vec_len_hint

Related posts:

  1. Intel Graphics Driver 26.20.100.7212 Released (Vulkan 1.1.120 + 10th Gen GPU Iris Plus Graphics)
  2. Intel Graphics Driver 27.20.100.8336 Released (Vulkan 1.2.142)
  3. Intel Graphics Driver 26.20.100.7372 Released (Vulkan 1.1.120)
  4. Intel Graphics Driver 27.20.100.8280 Released (Vulkan 1.2.137)
  5. Intel Graphics Driver 27.20.100.8476 Released (Vulkan 1.2.145)

One thought on “Intel Graphics Driver 26.20.100.7158 Released (Vulkan 1.1.114 + 10th Gen GPU)”

Comments are closed.
