1 – Overview

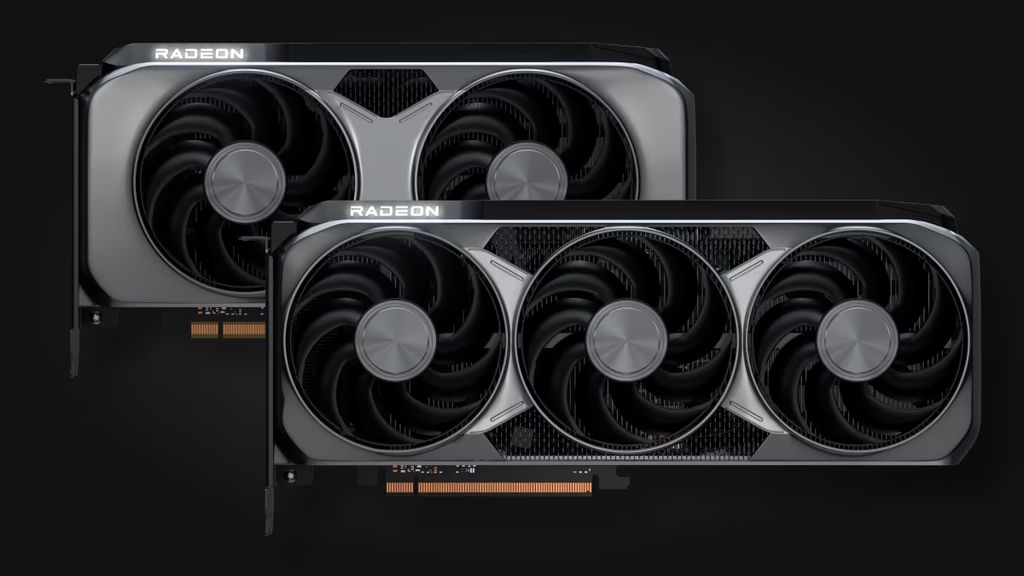

AMD has launched the first members of its new family of graphics cards based on the RDNA 4 GPU architecture: the Radeon RX 9070 XT and the Radeon RX 9070. Both cards are based on the Navi 48 GPU which is a monolithic die (unlike previous Navi 3 with is made up of chiplets). The RX 9070 XT targets the GeForce RTX 5070 Ti while the RX 9070 is a competes with the GeForce RTX 5070. The RX 9070 cards are designed for 1440p gaming.
And the nice news with the launch of the RX 9070 cards is that there are lot of RX 9070 Series in retailers like at OCUK (source):

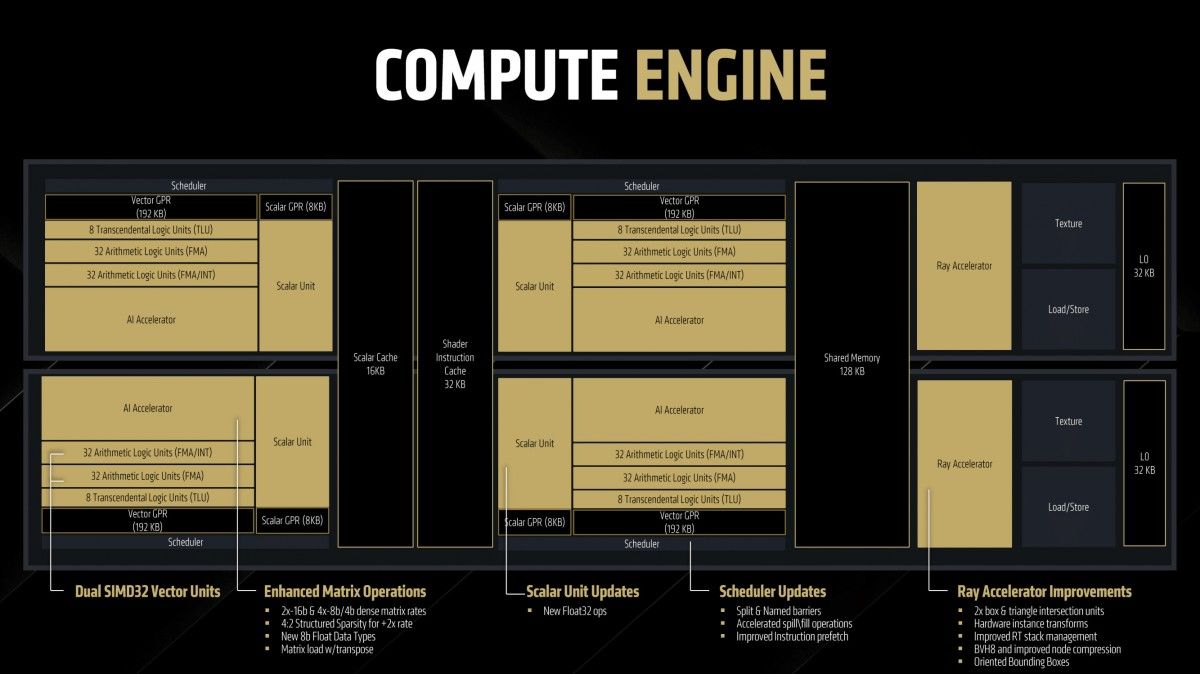

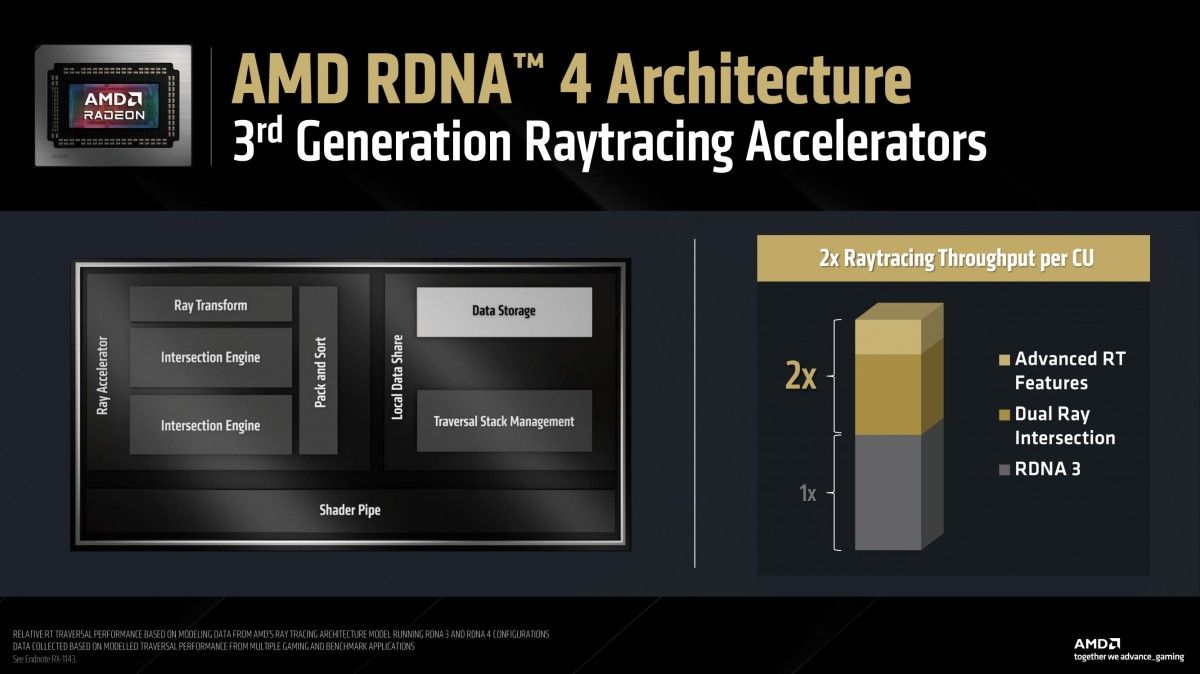

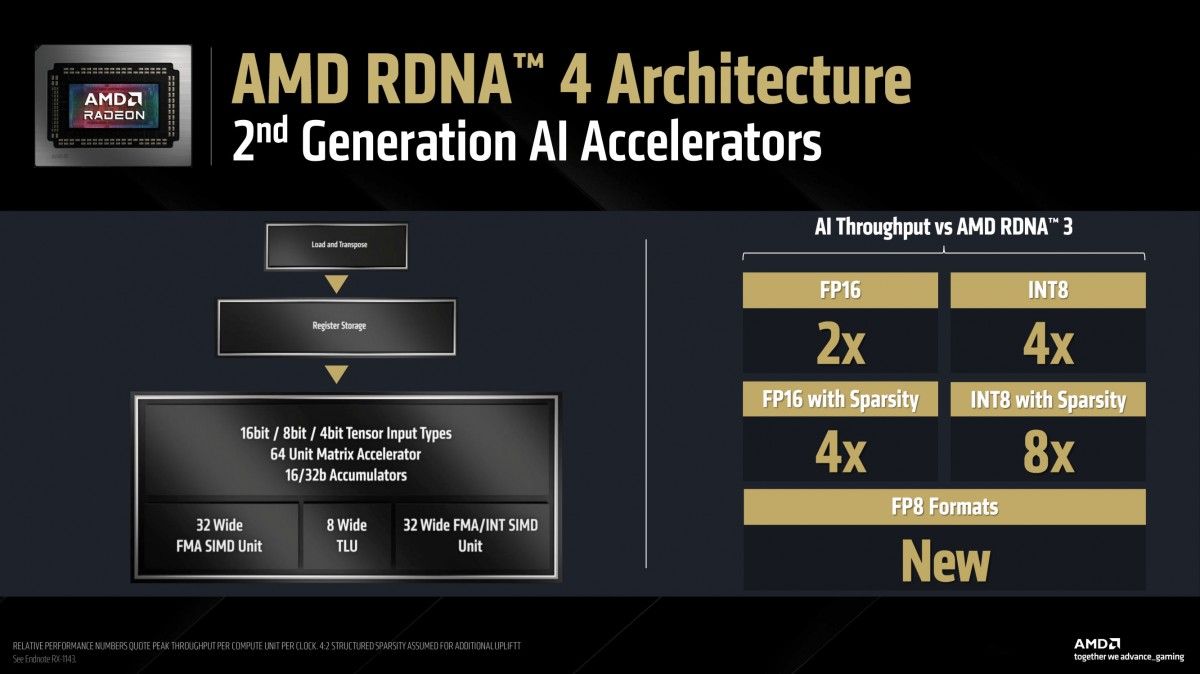

More details about the RDNA 4 architecture can be found HERE and HERE.
2 – Radeon RX 9070 XT full specifications
- GPU: Navi 48, RDNA 4 architecture, TSMC N4P 4nm process, 53 billion transistors, base clock: 2400 MHz, boost clock: 2970 MHz
- cores: 4096
- RDNA 4 compute units: 64 (64 cores / CU)
- Ray tracing cores: 64
- AI accelerators: 128
- Texture units: 256
- ROPs: 128
- FP32: 48.6 TFLOPS
- FP64: 1/32 FP32
- Memory: 16GB GDDR6, 256-bit memory bus, bandwidth: 640 GB/sec
- Total Power Consumption: 304W
- Power connectors: 2 x 8-pin
- Bus interface: PCIe 5.0 X16
- MSRP: USD $600
- Launch date: March 5, 2025
3 – Radeon RX 9070 full specifications
- GPU: Navi 48, RDNA 4 architecture, TSMC N4P 4nm process, 53 billion transistors, base clock: 2070 MHz, boost clock: 2520 MHz
- cores: 3584
- RDNA 4 compute units: 56 (64 cores / CU)
- Ray tracing cores: 56
- AI accelerators: 112
- Texture units: 224
- ROPs: 128
- FP32: 36.1 TFLOPS
- FP64: 1/32 FP32
- Memory: 16GB GDDR6, 256-bit memory bus, bandwidth: 640 GB/sec
- Total Power Consumption: 220W
- Power connectors: 2 x 8-pin
- Bus interface: PCIe 5.0 X16
- MSRP: USD $550
- Launch date: March 5, 2025
4 – Radeon RX 9070 XT and RX 9070 Reviews
- AMD Radeon RX 9070 XT @ techpowerup.com
- AMD Radeon RX 9070 @ techpowerup.com
- AMD Radeon RX 9070 and RX 9070 XT @ pcper.com
- AMD Radeon RX 9070 XT @ cowcotland
- AMD Radeon RX 9070 and RX 9070 XT @ igorslab
- more Radeon RX 9070 reviews @ videocardz
