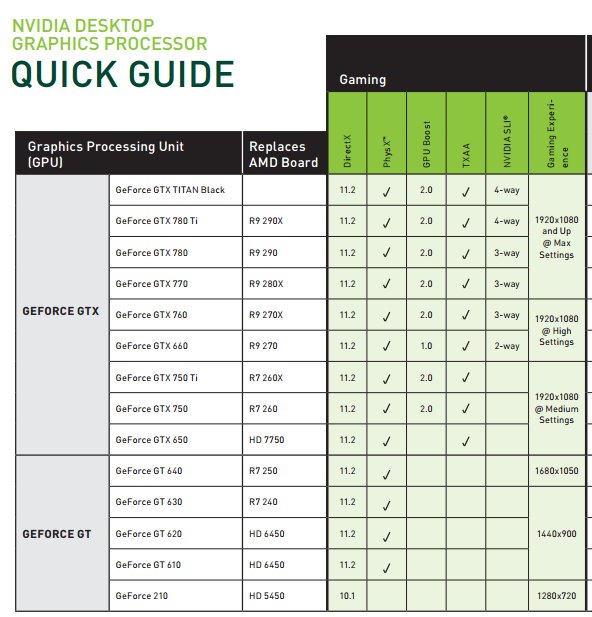

NVIDIA has released the GeForce desktop linecard for 2014. You can download the PDF file from this link.
The linecard shows also which AMD Radeon card can be replaced by a NVIDIA GeForce card.
Another big PDF is available for latest NVIDIA news: GeForce Update – Feb 2014.
Why do they write DX11.2 for these cards when they still not support feature_level_11_0? I known what they said about it, but 64 UAV in a pipeline is definitely a gaming feature and all GeForce only support 8 UAV.
My 660 still in the line, good. But Kepler doesn’t support DX11.2, maybe some features are software driver based. I still use Win7 so it doesn’t matter for me though.
Frank
what are you talking about? GeForce support DX11 games and is a great performer. Gaming feature is how many FPS your card can show, not some unknown “UAV”
Here is an outdated article (before Win 8.1 release)
Fermi and Kepler DirectX API Support
Published 12/18/2012
http://nvidia.custhelp.com/app/answers/detail/a_id/3196
atm there are no Maxwell related FAQs at NVIDIA support.
If they appear some day i post them in the forum.
http://nvidia.custhelp.com/app/answers/detail/a_id/3196
Fermi and Kepler GPUs do not support two of these features:
UAVOnlyRenderingForcedSampleCount supports 16x raster coverage sampling
TIR – aliased color-only rendering with up to 16x raster coverage sampling
These two features are intended as path rendering acceleration aids for Direct2D, used optionally if the hardware supports feature level 11_1. We felt that for Fermi and Kepler, it was more important to maximize our investment in work that is more important to 3D graphics and therefore chose not to implement support for those two features.
The third feature…
UAVs in the vertex, geometry and tessellation shaders
is supported by Fermi and Kepler GPUs however because this is only exposed through the hardware feature level 11_1, as a group of three features, we currently do not support it via the DX11.1 interfaces. We may expose support for the UAVs in the vertex, geometry and tessellation shaders feature on an app-specific basis in the future.
Fermi, Kepler and Maxwell supports DX11.2 Tiled Resources, so it supports DX11.2, period.
My problem is that they don’t support larger number of UAVs for the pipeline. Only 8 UAV is available, when the feature_level_11_1 needs 64.
This is the most important feature in D3D11.1 for me, because I can write more cs to the program.
Frank
I don’t understand what did you mean “still not support feature_level_11_0”
I want to write feature_level_11_1. Sorry.
If partial support would mean full support…
Well Mesa drivers have support for some OpenGL 4.3 extensions…
Nobody claim OpenGL 4.3 compliance though.
Problem with DX is that its not designed for extensions, and thus people do not have that paradigm in mind when talking about DX features.
That way or this way, its not what full DX have to offer.
So its bit better than DX11.1 at least.
And could be better if only MS allowed extensions…
(Back on topic. Where TF are OpenGL versions? :P)
Interesting blah from nVidia here. So they don’t think path rendering in Direct2D is important but on the other hand they added their own proprietary extensions to OpenGL for path rendering. Hmmmm I love those schizophrenic nVidia people
nV is not compatibile with DX 11.1 or 11.2 PERIOD
STOP lying to customers.
All is in the spec of those cards, nV canot lie so only DX11 basic in nV 6xx & 7xx
Here is the Spec Hardware feature in win 8
-> http://imageshack.com/a/img5/1205/titanfeaturelevel.png
DrBalthar
hardware doesn’t support it and OpenGL doesn’t have Direct2D
“These two features are intended as path rendering acceleration aids for Direct2D, used optionally if the hardware supports feature level 11_1. We felt that for Fermi and Kepler, it was more important to maximize our investment in work that is more important to 3D graphics and therefore chose not to implement support for those two features.”
read article already
“Fermi and Kepler GPUs do not support two of these features:
UAVOnlyRenderingForcedSampleCount supports 16x raster coverage sampling
TIR – aliased color-only rendering with up to 16x raster coverage sampling
These two features are intended as path rendering acceleration aids for Direct2D, used optionally if the hardware supports feature level 11_1. We felt that for Fermi and Kepler, it was more important to maximize our investment in work that is more important to 3D graphics and therefore chose not to implement support for those two features.”
