AMD Radeon HD 7970 Specifications

AMD Radeon PCB



Like before any new major launch, leaks appear everywhere on the Net. Today, here are the specs of the Tahiti based graphics card, the new Radeon HD 7970:

  • GPU: Tahiti XT @ 925MHz, 28nm, GCN architecture (Graphics Core Next, see HERE for some details).
  • Shader processors: 2048
  • Compute units: 32 (64 shader processors per compute unit – more information about compute units HERE)
  • Texture units: 128
  • ROPs / Z-stencil: 32 / 128
  • Memory: 3GB GDDR5, 384-bit, 5500MHz
  • Power connectors: 6-pin + 8-pin
  • TDP: less than 300W

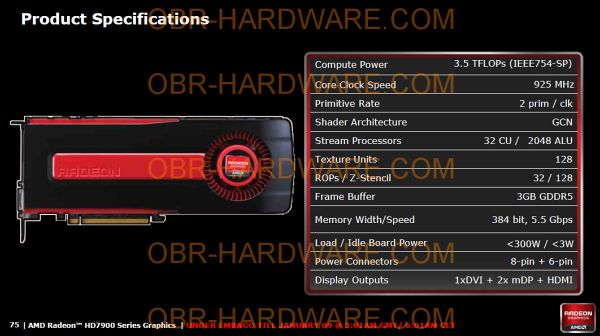

AMD Radeon HD 7970 Specifications


(source) | (via)




2 thoughts on “AMD Radeon HD 7970 Specifications”

  1. DS

    They never intented to use XDR2, it was just a silly rumour.

    PS. The clocks should be 880mhz and TDP around 200W.
