<GeeXLab Rootard Guide/>

How to launch a demo


Last update: 2018.08.14 by JeGX

>> Back <<

[ French version / Version fran├žaise ]


Depending on the platform (Windows, Linux, macOS), the launching of a demo can vary. There are two main methods:

  1. launching a demo using a drag-and-drop
  2. launching a demo from the command line

The first method is available on all platforms (Windows, Linux et macOS) since GeeXLab 0.25.3.0. The second method is available on all platforms.



Method 1: Drag-and-Drop


It's the easiest method for launching a demo: just start GeeXLab and drag-and-drop any XML scene file from the file manager (Explorer on Windows, Finder on macOS, etc.) into GeeXLab. Here is the drag-and-drop in action on Raspberry Pi:

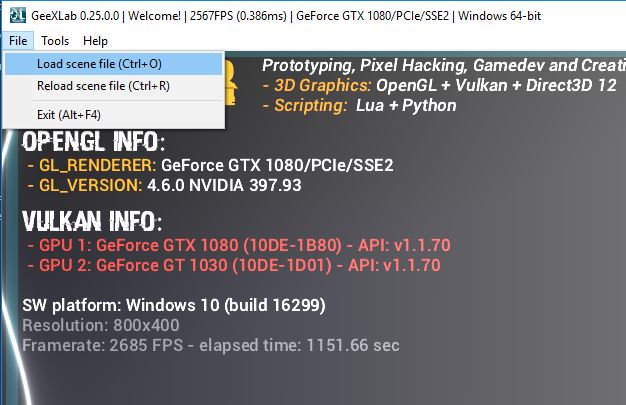

On Windows and macOS, you can also launch a demo from GeeXLab user interface: just go to Menu > File > Load scene file (keyboard shortcut CTRL+O).


If you have done changes in the demo source code, just reload it with the following shortcut: CTRL+R (or via the menu: File > Reload scene file).





Method 2: Command Line


The command line is not the easiest method but it's a powerful one. And this method is available on all platforms. Let's see how to use the command line for each platform.


For every platform, I suppose a terminal is open in GeeXLab root folder and that we want to run a demo called my_demo.xml stored in GeeXLab demos/ folder.

Windows


GeeXLab.exe /demofile="./demos/my_demo.xml"

macOS


open 'GeeXLab.app' --args '/demofile="./demos/my_demo.xml"'

Linux

Here the Linux platform can be the regular Linux (Ubuntu, Linux Mint, etc) as well as the Raspbian (Raspberry Pi) and Tinker OS (ASUS Tinker Board) platforms.


./GeeXLab /demofile=\"./demos/my_demo.xml\"


We can also store the command line in a .sh file. In that case for macOS and Linux, do not forget to add #!/bin/bash in the first line of the .sh file.

start_demo.sh file:


#!/bin/bash
./GeeXLab /demofile=\"./demos/my_demo.xml\"

You can launch this file from the command line with:


$ sh ./start_demo.sh
