Furmark 1.20.1.0: weird CPU load

[pegnose]

If I run Furmark with an up-to-date NVidia driver (398.11), CPU load might start at around 60%. Settings are:

1024x768, windowed, 8xAA
Dynamic Background, Burn-In, Extreme Burn-In, Post-FX

If I use CPU Burner then with 2 cores, CPU load due to Furmark might drop to ~30%, and after quitting CPU Burner, it might or might not stay there (or go back to ~60%).

If I use CPU Burner then with 4 cores, CPU load due to Furmark might drop to ~2.5%, and after quitting CPU Burner, it might or might not stay there (or go back to ~30%).

Wadu heck? Initially I though "Shoot, my Zotac barebone with a GTX1060 GPU has issues with drivers downloaded directly from NVidia." Because I saw an increase of CPU load during running Furmark from 30 to 60% after I updated from the latest manufacturers drivers (376.33). During more extensive testing I found out that CPU load created by Furmark does not mean anything performance-wise. FPS do not go down more than 1-2 frames (from 55 to 54 fps) due to high concurrent CPU load. Furmark might or might not stutter for a moment, but it will recover quickly and continue running with nearly the same performance unless concurrent CPU load actually reaches 100%.

I would really like to know what Furmark is doing in the background, that it can easily do without. I hope its not crypto-mining...

[JeGX]

I hope you have downloaded FurMark from Geeks3D.com server (the official FurMark installer size is around 10MB). I know that some suspect russian sites distribute some fraudulent versions of FurMark bundled with cpu-miner (around 280MB)...

Have a look at the release notes:
https://www.geeks3d.com/20180123/furmark-1-20-0-gpu-stress-test-download/

Maybe you will find the solution to your CPU issue (the thread affinity mask).

FurMark does nothing in the background, it's just a render thread that sends 3D instructions to the GPU to burn it!

[pegnose]

JeGX, thank you for the reply.

I can now say that I observed this phenomenon on two quite different PCs with Furmark Versions 1.20 and 1.19. And yes, the download size is around 10 MB.

One is a barebone mini PC with an i5 7500T quad-core (no HT) and a GTX1060 in MXM (?) format, and one is a regular desktop with a i5 4460 quad-core (no HT either) and a GTX980Ti.

Both PCs have 4 threads and neither 60 nor 30% of CPU load do seam to correspond to a particular thread count (or 2.5% for that matter).

What is the CPU load created by Furmark you get? And does it vary as much depending on concurrent load as on my PCs? I want to make sure that nothing is wrong with my VR setups, because I cannot monitor system performance as closely during their actual application.

[JeGX]

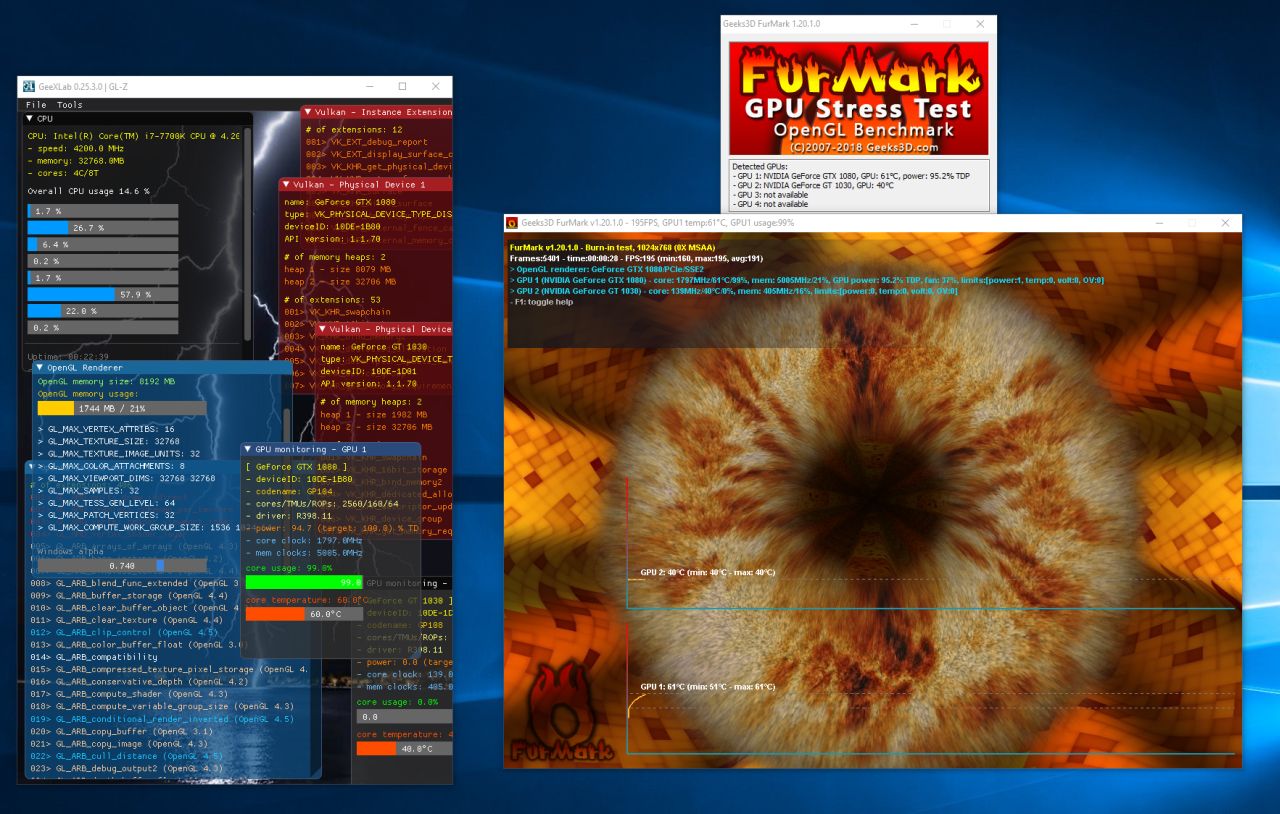

For your information, here is the CPU usage with FurMark running at 1024x768: around 15% on 8 logical cores.
When the affinity mask is set to 0 (default value in FurMark 1.20.1), the CPU load is spread on all cores.



Hope that helps.

[pegnose]

Thanks.

So 15% with Hyperthreading would mean 30% without, if I understand the slightly misleading CPU load info under Windows correctly. That could mean that you see the same 30% load I often see. I assume this 15% load is constant right from the start?

[JeGX]

Yes the 15% load is constant and is equivalent to your 30%.

[pegnose]

Thanks for the info. I think now that everything is fine with my render PCs.

Nevertheless, just out of curiosity, I would be interested in whether you can also 'force' Furmark to reduce its CPU load via concurrent load from CPU burner without any substantial FPS loss.
