GeexLab 0.13 Direct X 12 CRASH on startup

[mdmdmdmd]

Hello:

Does anybody have the Geexlab utility crash on any Direct x 12 running Intel HD Graphics (3000 & 4000) on Windows 10 Anniversay Update?

It runs the OpenGL stuff just fine, but forget about running Direct X 12 samples.

Have a  board with Gigabyte Wifi.

Where is the error log located?

Attached is my dxdiag dump.

------------------
System Information
------------------
      Time of this report: 2/28/2017, 07:25:38
             Machine name: MDWIN10
               Machine Id: {3D155BA6-7FDA-4CF9-9B1D-2303670B90FB}
         Operating System: Windows 10 Home 64-bit (10.0, Build 14393) (14393.rs1_release.161220-1747)
                 Language: English (Regional Setting: English)
      System Manufacturer: Gigabyte Technology Co., Ltd.
             System Model: To be filled by O.E.M.
                     BIOS: BIOS Date: 08/23/12 15:20:04 Ver: 04.06.05
                Processor: Intel(R) Core(TM) i3-3225 CPU @ 3.30GHz (4 CPUs), ~3.3GHz
                   Memory: 8192MB RAM
      Available OS Memory: 8078MB RAM
                Page File: 2441MB used, 6917MB available
              Windows Dir: C:\WINDOWS
          DirectX Version: DirectX 12
      DX Setup Parameters: Not found
         User DPI Setting: Using System DPI
       System DPI Setting: 96 DPI (100 percent)
          DWM DPI Scaling: Disabled
                 Miracast: Available, with HDCP
Microsoft Graphics Hybrid: Not Supported
           DxDiag Version: 10.00.14393.0000 64bit Unicode

------------
DxDiag Notes
------------
      Display Tab 1: No problems found.
        Sound Tab 1: No problems found.
        Sound Tab 2: No problems found.
        Sound Tab 3: No problems found.
        Sound Tab 4: No problems found.
          Input Tab: No problems found.

--------------------
DirectX Debug Levels
--------------------
Direct3D:    0/4 (retail)
DirectDraw:  0/4 (retail)
DirectInput: 0/5 (retail)
DirectMusic: 0/5 (retail)
DirectPlay:  0/9 (retail)
DirectSound: 0/5 (retail)
DirectShow:  0/6 (retail)

---------------
Display Devices
---------------
          Card name: Intel(R) HD Graphics 4000
       Manufacturer: Intel Corporation
          Chip type: Intel(R) HD Graphics Family
           DAC type: Internal
        Device Type: Full Device
         Device Key: Enum\PCI\VEN_8086&DEV_0162&SUBSYS_D0001458&REV_09
      Device Status: 0180200A [DN_DRIVER_LOADED|DN_STARTED|DN_DISABLEABLE|DN_NT_ENUMERATOR|DN_NT_DRIVER]
Device Problem Code: No Problem
Driver Problem Code: Unknown
     Display Memory: 1792 MB
   Dedicated Memory: 32 MB
      Shared Memory: 1760 MB
       Current Mode: 1920 x 1080 (32 bit) (59Hz)
       Monitor Name: Gateway FHX2300
      Monitor Model: FHX2300
         Monitor Id: GWY00BF
        Native Mode: 1920 x 1080(p) (60.000Hz)
        Output Type: HDMI
        Driver Name: igdumdim64.dll,igd10iumd64.dll,igd10iumd64.dll
Driver File Version: 10.18.0010.4358 (English)
     Driver Version: 10.18.10.4358
        DDI Version: 11.2
     Feature Levels: 11_0,10_1,10_0,9_3,9_2,9_1
       Driver Model: WDDM 1.3
Graphics Preemption: DMA
Compute Preemption: Thread group
           Miracast: Not Supported by WiFi driver
Hybrid Graphics GPU: Not Supported
     Power P-states: Not Supported
  Driver Attributes: Final Retail
   Driver Date/Size: 12/20/2015 6:00:00 PM, 11157656 bytes
        WHQL Logo'd: Yes
    WHQL Date Stamp: Unknown
  Device Identifier: {D7B78E66-4222-11CF-EE66-0AF0B4C2C735}
          Vendor ID: 0x8086
          Device ID: 0x0162
          SubSys ID: 0xD0001458
        Revision ID: 0x0009
Driver Strong Name: oem16.inf:5f63e53413eb6103:iIVBD_w10:10.18.10.4358:pci\ven_8086&dev_0162
     Rank Of Driver: 00D12001
        Video Accel: ModeMPEG2_A ModeMPEG2_C ModeWMV9_C ModeVC1_C
        DXVA2 Modes: DXVA2_ModeMPEG2_VLD  DXVA2_ModeMPEG2_IDCT  DXVA2_ModeVC1_D2010  DXVA2_ModeWMV9_IDCT  DXVA2_ModeVC1_IDCT  DXVA2_ModeH264_VLD_NoFGT

[JeGX]

I will do a test. I let you know asap.

[JeGX]

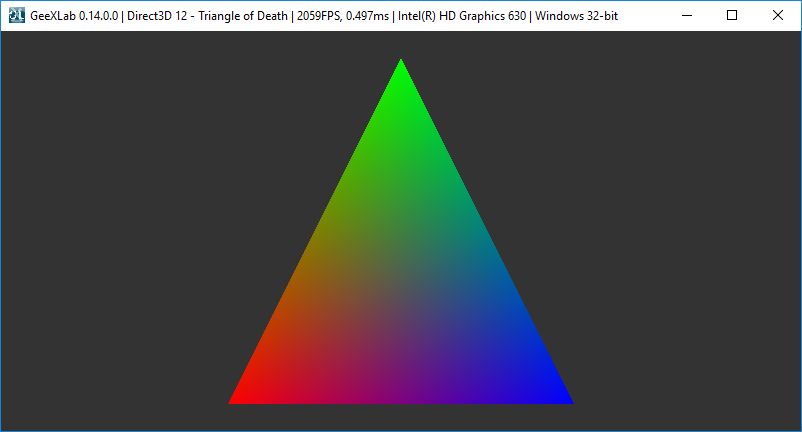

Ok I've done a test with my notebook ASUS GL553VD that has a GTX 1050 and a HD Graphics 630. And at first sight, DX12 demos work fine on the HD Graphics 630 (with graphics driver v4550):



According to your dxdiag report, you have the driver v4358. Maybe this old driver is the source of the crash. Try a more recent one:
- v4590
- v4501
