Reference grid (GLSL Hacker v0.6.3.19+)

[JeGX]

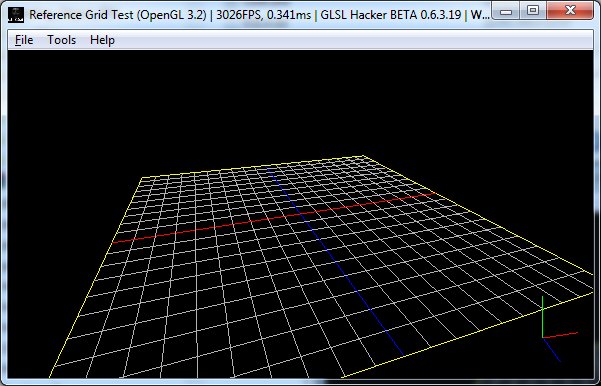

A new object  is available since version  v0.6.3.19+: a reference grid:



A demo is available in the code sample pack: moon3d/gl-320-reference-grid/

Here is the way to create a ref grid:

Code Select Expand


grid = gh_utils.grid_create()
gh_utils.grid_set_geometry_params(grid, 10, 10, 20, 20)
gh_utils.grid_set_lines_color(grid, 0.7, 0.7, 0.7, 1.0)
gh_utils.grid_set_main_lines_color(grid, 1.0, 1.0, 0.0, 1.0)
gh_utils.grid_set_main_x_axis_color(grid, 1.0, 0.0, 0.0, 1.0)
gh_utils.grid_set_main_z_axis_color(grid, 0.0, 0.0, 1.0, 1.0)
local display_main_lines = 1
local display_lines = 1
gh_utils.grid_set_display_lines_options(grid, display_main_lines, display_lines)



The rendering:

Code Select Expand


gh_gpu_program.bind(simple_color_prog)
gh_object.render(grid)
