AMD Radeon Software Adrenalin 22.11.1 Released (UPDATED: Adrenalin 22.11.2)


AMD Radeon Software Adrenalin Graphics Driver


AMD has published a new version of its graphics driver for Radeon graphics cards. Here is the main changes:

Highlights
Support for:
– Call of Duty: Warzone 2.0
– Marvel’s Spider-Man: Miles Morales

Fixed Issues
– World Of Warships prediction lines may be missing on Radeon RX 6000 series GPUs.
– When Radeon Anti-Lag is enabled, a beep can be heard when pressing the shift + back key.
– OpenGL applications using MSAA may see visual corruption.
– Higher than expected idle VRAM clock using multi-monitor setups on Radeon RX 6000 series GPUs.
– Selected objects may be missing in Edificius.

UPDATE (2022.12.02): Adrenalin 22.11.2

AMD could have released the version 22.12.1…

Highlights
Support for:
– The Callisto Protocol
– Need for Speed Unbound
– The Witcher 3: Wild Hunt Next-Gen Update

Fixed Issues
– During video playback and window switching, an intermittent driver timeout or black screen may occur on Radeon RX 6000 series GPUs using some 240Hz refresh rate displays or high refresh rate primary display plus low refresh rate secondary display configurations.
– Stuttering may occur during video playback using hardware acceleration with Firefox on Radeon RX 6000 series GPUs.
– AMDRSServ.exe may cause GPU utilization to remain at 100% after closing games on some AMD Graphics Products such as Radeon 570.
– An intermittent driver timeout or black screen may occur while videos are playing in VRChat™ on Radeon™ RX 6000 series GPUs.



Radeon Software Adrenalin Downloads



Quick driver information

Adrenalin 22.11.1

AMD Adrenalin 2020 Edition - Software information

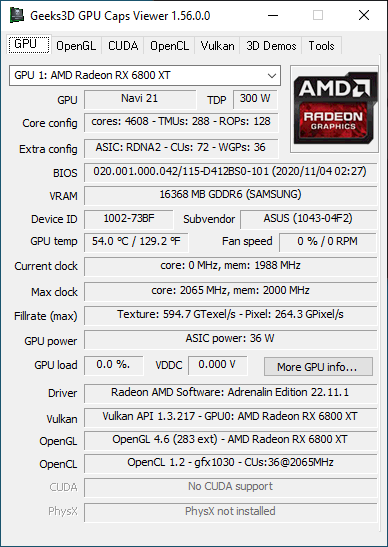

AMD Adrenalin 2020 Edition - GPU Caps Viewer + Radeon RX 6800 XT


A screenshot of the new GPU Shark:
AMD Adrenalin 2020 Edition - GPU Shark 2 + Radeon RX 6800 XT



Adrenalin 22.11.2

AMD Adrenalin 2020 Edition - Software information

AMD Adrenalin 2020 Edition - GPU Caps Viewer + Radeon RX 6800 XT


A screenshot of the new GPU Shark:
AMD Adrenalin 2020 Edition - GPU Shark 2 + Radeon RX 6800 XT



OpenGL support

Adrenalin 22.11.1

Adrenalin 22.11.3 exposes OpenGL 4.6 and 283 extensions (core profile) for a Radeon RX 6800 XT. Compared to previous driver 22.10.3, 5 new extensions have been added:

– GL_ARB_seamless_cube_map
– GL_KHR_shader_subgroup
– GL_NV_depth_buffer_float
– GL_NV_float_buffer
– GL_NV_texture_barrier

It looks like these new extensions are rather old extensions that have been removed in Adrenalin 22.7.1 (remember, the driver with tons of OpenGL optimizations!). Before 22.7.1, the AMD OpenGL driver had 331 OpenGL extensions (22.6.1)… So we can expect more new GL extensions in next Radeon drivers.

- GL_VENDOR: ATI Technologies Inc.
- GL_RENDERER: AMD Radeon RX 6800 XT
- GL_VERSION: 4.6.0 Core Profile Context 22.11.1.221110

- OpenGL Extensions: 283 extensions (GL=263 and WGL=20)
  - GL_AMD_blend_minmax_factor
  - GL_AMD_bus_addressable_memory
  - GL_AMD_depth_clamp_separate
  - GL_AMD_gpu_shader_half_float
  - GL_AMD_gpu_shader_int16
  - GL_AMD_gpu_shader_int64
  - GL_AMD_pinned_memory
  - GL_AMD_sample_positions
  - GL_AMD_shader_trinary_minmax
  - GL_AMD_vertex_shader_layer
  - GL_AMD_vertex_shader_viewport_index
  - GL_ARB_ES2_compatibility
  - GL_ARB_ES3_compatibility
  - GL_ARB_arrays_of_arrays
  - GL_ARB_base_instance
  - GL_ARB_bindless_texture
  - GL_ARB_blend_func_extended
  - GL_ARB_buffer_storage
  - GL_ARB_clear_buffer_object
  - GL_ARB_clear_texture
  - GL_ARB_clip_control
  - GL_ARB_color_buffer_float
  - GL_ARB_compute_shader
  - GL_ARB_conditional_render_inverted
  - GL_ARB_conservative_depth
  - GL_ARB_copy_buffer
  - GL_ARB_copy_image
  - GL_ARB_cull_distance
  - GL_ARB_debug_output
  - GL_ARB_depth_buffer_float
  - GL_ARB_depth_clamp
  - GL_ARB_depth_texture
  - GL_ARB_derivative_control
  - GL_ARB_direct_state_access
  - GL_ARB_draw_buffers
  - GL_ARB_draw_buffers_blend
  - GL_ARB_draw_elements_base_vertex
  - GL_ARB_draw_indirect
  - GL_ARB_draw_instanced
  - GL_ARB_enhanced_layouts
  - GL_ARB_explicit_attrib_location
  - GL_ARB_explicit_uniform_location
  - GL_ARB_fragment_coord_conventions
  - GL_ARB_fragment_layer_viewport
  - GL_ARB_fragment_program
  - GL_ARB_fragment_program_shadow
  - GL_ARB_fragment_shader
  - GL_ARB_framebuffer_no_attachments
  - GL_ARB_framebuffer_object
  - GL_ARB_framebuffer_sRGB
  - GL_ARB_geometry_shader4
  - GL_ARB_get_program_binary
  - GL_ARB_get_texture_sub_image
  - GL_ARB_gl_spirv
  - GL_ARB_gpu_shader5
  - GL_ARB_gpu_shader_fp64
  - GL_ARB_half_float_pixel
  - GL_ARB_half_float_vertex
  - GL_ARB_indirect_parameters
  - GL_ARB_instanced_arrays
  - GL_ARB_internalformat_query
  - GL_ARB_internalformat_query2
  - GL_ARB_invalidate_subdata
  - GL_ARB_map_buffer_range
  - GL_ARB_multi_bind
  - GL_ARB_multi_draw_indirect
  - GL_ARB_multisample
  - GL_ARB_multitexture
  - GL_ARB_occlusion_query
  - GL_ARB_occlusion_query2
  - GL_ARB_parallel_shader_compile
  - GL_ARB_pipeline_statistics_query
  - GL_ARB_pixel_buffer_object
  - GL_ARB_point_parameters
  - GL_ARB_point_sprite
  - GL_ARB_polygon_offset_clamp
  - GL_ARB_post_depth_coverage
  - GL_ARB_program_interface_query
  - GL_ARB_query_buffer_object
  - GL_ARB_robustness
  - GL_ARB_sample_shading
  - GL_ARB_sampler_objects
  - GL_ARB_seamless_cube_map
  - GL_ARB_seamless_cubemap_per_texture
  - GL_ARB_separate_shader_objects
  - GL_ARB_shader_atomic_counters
  - GL_ARB_shader_ballot
  - GL_ARB_shader_bit_encoding
  - GL_ARB_shader_clock
  - GL_ARB_shader_draw_parameters
  - GL_ARB_shader_group_vote
  - GL_ARB_shader_image_load_store
  - GL_ARB_shader_image_size
  - GL_ARB_shader_objects
  - GL_ARB_shader_precision
  - GL_ARB_shader_stencil_export
  - GL_ARB_shader_storage_buffer_object
  - GL_ARB_shader_subroutine
  - GL_ARB_shader_texture_image_samples
  - GL_ARB_shader_texture_lod
  - GL_ARB_shader_viewport_layer_array
  - GL_ARB_shading_language_100
  - GL_ARB_shading_language_420pack
  - GL_ARB_shadow
  - GL_ARB_shadow_ambient
  - GL_ARB_sparse_buffer
  - GL_ARB_sparse_texture
  - GL_ARB_stencil_texturing
  - GL_ARB_sync
  - GL_ARB_tessellation_shader
  - GL_ARB_texture_barrier
  - GL_ARB_texture_border_clamp
  - GL_ARB_texture_buffer_object
  - GL_ARB_texture_buffer_range
  - GL_ARB_texture_compression
  - GL_ARB_texture_compression_bptc
  - GL_ARB_texture_compression_rgtc
  - GL_ARB_texture_cube_map
  - GL_ARB_texture_cube_map_array
  - GL_ARB_texture_env_add
  - GL_ARB_texture_env_combine
  - GL_ARB_texture_env_dot3
  - GL_ARB_texture_filter_anisotropic
  - GL_ARB_texture_filter_minmax
  - GL_ARB_texture_float
  - GL_ARB_texture_gather
  - GL_ARB_texture_mirror_clamp_to_edge
  - GL_ARB_texture_multisample
  - GL_ARB_texture_multisample_no_array
  - GL_ARB_texture_non_power_of_two
  - GL_ARB_texture_query_levels
  - GL_ARB_texture_rectangle
  - GL_ARB_texture_rg
  - GL_ARB_texture_rgb10_a2ui
  - GL_ARB_texture_stencil8
  - GL_ARB_texture_storage
  - GL_ARB_texture_storage_multisample
  - GL_ARB_texture_swizzle
  - GL_ARB_texture_view
  - GL_ARB_timer_query
  - GL_ARB_transform_feedback
  - GL_ARB_transform_feedback2
  - GL_ARB_transform_feedback3
  - GL_ARB_transform_feedback_instanced
  - GL_ARB_transform_feedback_overflow_query
  - GL_ARB_transpose_matrix
  - GL_ARB_uniform_buffer_object
  - GL_ARB_vertex_array_bgra
  - GL_ARB_vertex_array_object
  - GL_ARB_vertex_attrib_64bit
  - GL_ARB_vertex_attrib_binding
  - GL_ARB_vertex_buffer_object
  - GL_ARB_vertex_program
  - GL_ARB_vertex_shader
  - GL_ARB_vertex_type_10f_11f_11f_rev
  - GL_ARB_vertex_type_2_10_10_10_rev
  - GL_ARB_viewport_array
  - GL_ARB_window_pos
  - GL_ATI_draw_buffers
  - GL_ATI_meminfo
  - GL_ATI_separate_stencil
  - GL_ATI_shader_texture_lod
  - GL_ATI_texture_env_combine3
  - GL_EXT_abgr
  - GL_EXT_bgra
  - GL_EXT_blend_color
  - GL_EXT_blend_equation_separate
  - GL_EXT_blend_func_separate
  - GL_EXT_blend_minmax
  - GL_EXT_blend_subtract
  - GL_EXT_clip_cull_distance
  - GL_EXT_color_buffer_half_float
  - GL_EXT_compiled_vertex_array
  - GL_EXT_copy_buffer
  - GL_EXT_copy_image
  - GL_EXT_debug_label
  - GL_EXT_depth_bounds_test
  - GL_EXT_direct_state_access
  - GL_EXT_draw_buffers2
  - GL_EXT_draw_buffers_indexed
  - GL_EXT_draw_range_elements
  - GL_EXT_fog_coord
  - GL_EXT_framebuffer_blit
  - GL_EXT_framebuffer_multisample
  - GL_EXT_framebuffer_object
  - GL_EXT_framebuffer_sRGB
  - GL_EXT_geometry_point_size
  - GL_EXT_geometry_shader4
  - GL_EXT_gpu_program_parameters
  - GL_EXT_gpu_shader4
  - GL_EXT_gpu_shader5
  - GL_EXT_memory_object
  - GL_EXT_memory_object_win32
  - GL_EXT_multi_draw_arrays
  - GL_EXT_nonuniform_qualifier
  - GL_EXT_packed_depth_stencil
  - GL_EXT_pixel_buffer_object
  - GL_EXT_point_parameters
  - GL_EXT_polygon_offset_clamp
  - GL_EXT_provoking_vertex
  - GL_EXT_render_snorm
  - GL_EXT_sRGB_write_control
  - GL_EXT_secondary_color
  - GL_EXT_semaphore
  - GL_EXT_semaphore_win32
  - GL_EXT_shader_image_load_store
  - GL_EXT_shader_integer_mix
  - GL_EXT_shader_io_blocks
  - GL_EXT_shadow_funcs
  - GL_EXT_stencil_wrap
  - GL_EXT_tessellation_point_size
  - GL_EXT_tessellation_shader
  - GL_EXT_texture3D
  - GL_EXT_texture_array
  - GL_EXT_texture_border_clamp
  - GL_EXT_texture_buffer
  - GL_EXT_texture_buffer_object
  - GL_EXT_texture_compression_bptc
  - GL_EXT_texture_compression_latc
  - GL_EXT_texture_compression_rgtc
  - GL_EXT_texture_compression_s3tc
  - GL_EXT_texture_edge_clamp
  - GL_EXT_texture_env_add
  - GL_EXT_texture_env_combine
  - GL_EXT_texture_env_dot3
  - GL_EXT_texture_filter_anisotropic
  - GL_EXT_texture_format_BGRA8888
  - GL_EXT_texture_integer
  - GL_EXT_texture_lod
  - GL_EXT_texture_lod_bias
  - GL_EXT_texture_mirror_clamp
  - GL_EXT_texture_object
  - GL_EXT_texture_rectangle
  - GL_EXT_texture_sRGB
  - GL_EXT_texture_sRGB_R8
  - GL_EXT_texture_sRGB_RG8
  - GL_EXT_texture_sRGB_decode
  - GL_EXT_texture_shared_exponent
  - GL_EXT_texture_snorm
  - GL_EXT_texture_storage
  - GL_EXT_timer_query
  - GL_EXT_transform_feedback
  - GL_EXT_vertex_array
  - GL_KHR_blend_equation_advanced
  - GL_KHR_blend_equation_advanced_coherent
  - GL_KHR_debug
  - GL_KHR_no_error
  - GL_KHR_parallel_shader_compile
  - GL_KHR_robust_buffer_access_behavior
  - GL_KHR_robustness
  - GL_KHR_shader_subgroup
  - GL_NV_blend_square
  - GL_NV_copy_image
  - GL_NV_depth_buffer_float
  - GL_NV_float_buffer
  - GL_NV_primitive_restart
  - GL_NV_shader_atomic_int64
  - GL_NV_texture_barrier
  - GL_OES_EGL_image
  - GL_OVR_multiview
  - GL_OVR_multiview2
  - GL_OVR_multiview_multisampled_render_to_texture
  - GL_S3_s3tc
  - WGL_EXT_swap_control
  - WGL_ARB_create_context
  - WGL_ARB_create_context_profile
  - WGL_EXT_create_context_es2_profile
  - WGL_EXT_swap_control_tear
  - WGL_ARB_pixel_format
  - WGL_ARB_pbuffer
  - WGL_ARB_multisample
  - WGL_ARB_pixel_format_float
  - WGL_ARB_make_current_read
  - WGL_ARB_framebuffer_sRGB
  - WGL_ARB_render_texture
  - WGL_ARB_buffer_region
  - WGL_NV_DX_interop
  - WGL_NV_DX_interop2
  - WGL_NV_swap_group
  - WGL_I3D_genlock
  - WGL_AMD_gpu_association
  - WGL_ARB_context_flush_control
  - WGL_ARB_create_context_no_error

- OpenGL SPIR-V Extensions: 0



Adrenalin 22.11.2

Same OpenGL support than v22.11.1

GL_RENDERER: AMD Radeon RX 6800 XT
GL_VENDOR: ATI Technologies Inc.
GL_VERSION: 4.6.0 Core Profile Context 22.11.2.221130
OpenGL extensions: 283



Vulkan support

Adrenalin 22.11.1

Adrenalin 22.11.1 exposes Vulkan 1.3.217 and 145 device extensions for a Radeon RX 6800 XT on Windows 10 (64-bit). Same support than Adrenalin 22.7.1.

- Device 1
  - name: AMD Radeon RX 6800 XT
  - device type: VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU
  - device ID: 1002-73BF
  - API version: 1.3.217
 - # of extensions: 145



Adrenalin 22.11.2

Same Vulkan support than v22.11.1.

# of Vulkan devices: 1
- Device 1
  - name: AMD Radeon RX 6800 XT
  - device type: VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU
  - device ID: 1002-73BF
  - API version: 1.3.217
  - # of extensions: 145



OpenCL support

- Num OpenCL platforms: 1
- CL_PLATFORM_NAME: AMD Accelerated Parallel Processing
- CL_PLATFORM_VENDOR: Advanced Micro Devices, Inc.
- CL_PLATFORM_VERSION: OpenCL 2.1 AMD-APP (3444.0)
- CL_PLATFORM_PROFILE: FULL_PROFILE
- Num devices: 1
  - CL_DEVICE_NAME: gfx1030
  - CL_DEVICE_VENDOR: Advanced Micro Devices, Inc.
  - CL_DRIVER_VERSION: 3444.0 (PAL,LC)
  - CL_DEVICE_PROFILE: FULL_PROFILE
  - CL_DEVICE_VERSION: OpenCL 1.2 AMD-APP (3444.0)
  - CL_DEVICE_TYPE: GPU
  - CL_DEVICE_VENDOR_ID: 0x1002
  - CL_DEVICE_MAX_COMPUTE_UNITS: 36
  - CL_DEVICE_MAX_CLOCK_FREQUENCY: 2065MHz
  - CL_DEVICE_ADDRESS_BITS: 64
  - CL_DEVICE_MAX_MEM_ALLOC_SIZE: 3145728KB
  - CL_DEVICE_GLOBAL_MEM_SIZE: 3072MB
  - CL_DEVICE_MAX_PARAMETER_SIZE: 1024
  - CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
  - CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 16KB
  - CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
  - CL_DEVICE_LOCAL_MEM_TYPE: Local (scratchpad)
  - CL_DEVICE_LOCAL_MEM_SIZE: 64KB
  - CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 3145728KB
  - CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
  - CL_DEVICE_MAX_WORK_ITEM_SIZES: [1024 ; 1024 ; 1024]
  - CL_DEVICE_MAX_WORK_GROUP_SIZE: 256
  - CL_EXEC_NATIVE_KERNEL: 7988068
  - CL_DEVICE_IMAGE_SUPPORT: YES
  - CL_DEVICE_MAX_READ_IMAGE_ARGS: 128
  - CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 8
  - CL_DEVICE_IMAGE2D_MAX_WIDTH: 16384
  - CL_DEVICE_IMAGE2D_MAX_HEIGHT: 16384
  - CL_DEVICE_IMAGE3D_MAX_WIDTH: 2048
  - CL_DEVICE_IMAGE3D_MAX_HEIGHT: 2048
  - CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
  - CL_DEVICE_MAX_SAMPLERS: 16
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 4
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 2
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 1
  - CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 1
  - CL_DEVICE_EXTENSIONS: 21
  - Extensions:
    - cl_khr_fp64
    - cl_khr_global_int32_base_atomics
    - cl_khr_global_int32_extended_atomics
    - cl_khr_local_int32_base_atomics
    - cl_khr_local_int32_extended_atomics
    - cl_khr_int64_base_atomics
    - cl_khr_int64_extended_atomics
    - cl_khr_3d_image_writes
    - cl_khr_byte_addressable_store
    - cl_khr_fp16
    - cl_khr_gl_sharing
    - cl_amd_device_attribute_query
    - cl_amd_media_ops
    - cl_amd_media_ops2
    - cl_khr_d3d10_sharing
    - cl_khr_d3d11_sharing
    - cl_khr_dx9_media_sharing
    - cl_khr_image2d_from_buffer
    - cl_khr_gl_event
    - cl_amd_liquid_flash
    - cl_amd_copy_buffer_p2p


Leave a Comment

Your email address will not be published.
