(Unboxing) ASUS ROG Strix GeForce RTX 3090 OC 24GB


ASUS ROG Strix GeForce RTX 3090 OC 24GB

Here is a quick unboxing of ASUS’ ROG Strix GeForce RTX 3090 OC 24G, a gaming graphics card based on the Ampere GA102 GPU. Because of the miners and a touch of covid, most RTX 30 graphics cards are incredibly hard (impossible would be a better word) to find and you when you see their current crazy prices (more or less 3000 EUR), unboxing a RTX 3090 is an event (pathetic!).

Main features of the ROG Strix RTX 3090 OC 24G:
– GA102 GPU, base clock: 1395MHz, boost clock: 1860 MHz (Gaming mode)
– factory overclocked GPU boost clock: 1890MHz in OC mode.
– config (core/TMUs/ROPs): 10496 / 328 / 112
– SMs: 82 (128 cores/ SM)
– RT cores: 82
– total board power: 350W
– 2.9 slot design
– metal backplate
– RGB lighting effects
– fans are stopped if GPU temp is lower than 50°C

From top to bottom, the ROG Strix GeForce RTX™ 3090 has been radically improved to accommodate the impressive new Ampere chips from NVIDIA and to deliver the next wave of gaming performance innovation to the market. A fresh design and more metal surrounds a grouping of Axial-tech fans. Last gen’s uniform fan layout has been usurped by a new rotation scheme and specialized roles for central and auxiliary fans. Below the blades, a larger, more impressive heatsink is ready for the most demanding thermal loads. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. You’ve been waiting for the latest and greatest in GPU design – and this is it.

More information about the ROG Strix RTX 3090 OC 24G can be found on the homepage.

The bundle is minimal: the graphics card + some docs + CDROM with drivers and utilities + ROG ruler + ROG Velcro Hook / Loop + collection card.

ASUS ROG Strix GeForce RTX 3090 OC 24GB

The ROG PCB ruler keychain:
ASUS ROG Strix GeForce RTX 3090 OC 24GB

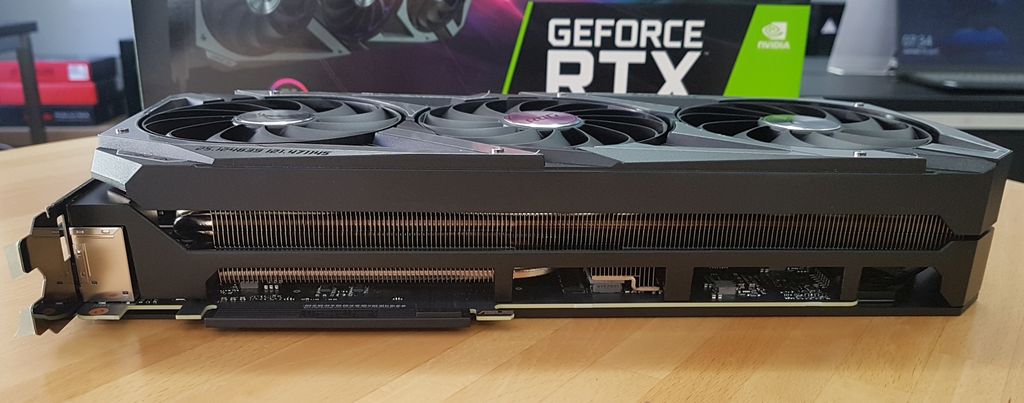

The card:
ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

The card has three 8-pin power connectors. The total power consumption can reach 525W (3*150 + 75). A 1000W PSU is recommended (like a Corsair RM1000x) to properly feed this beast.

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB

ASUS ROG Strix GeForce RTX 3090 OC 24GB
