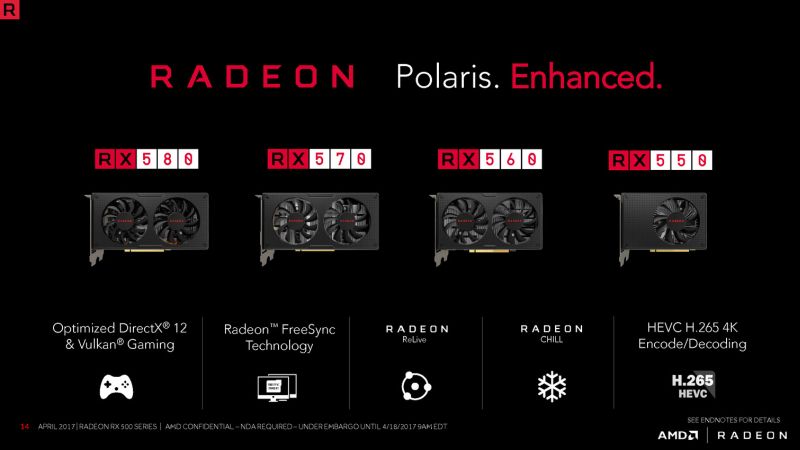

AMD has officially launched today the new Radeon RX 500 series. This new family of graphics cards comes with four members: The RX 580, RX 570, RX 560 and RX 550. The RX 580 and RX 570 are essentially higher clocked versions of the RX 480 / RX 470. The RX 560 is based on a new GPU (more shader cores than the RX 460) and the RX 550 is designed for notebooks or as a better alternative to integrated GPU on desktops.

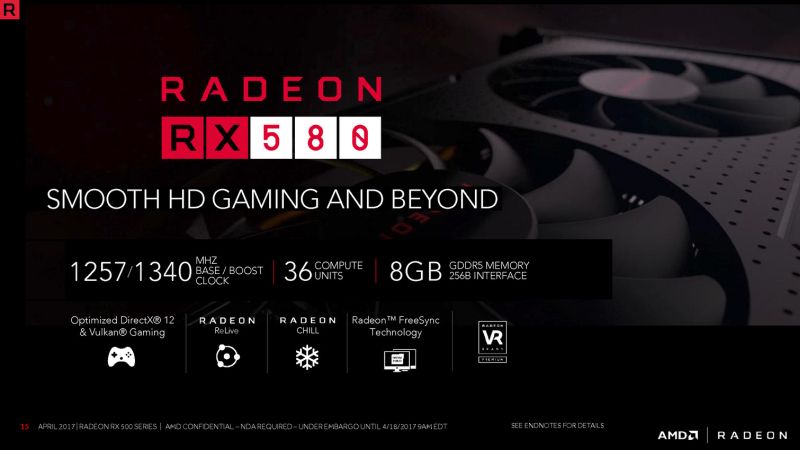

Radeon RX 580
- GPU: Polaris 20 (base: 1257MHz, boost: 1340MHz) – process: 14nm
- Shader cores: 2304 (36 compute units)
- Memory: 4GB or 8GB GDDR5 @ 8GHz effective speed – memory interface: 256-bit
- Texture units: 144
- ROPs: 32
- TDP: 185W
- Price: $199 (4GB) or $229 (8GB)
Radeon RX 570
- GPU: Polaris 20 (base: 1168MHz, boost: 1244MHz) – process: 14nm
- Shader cores: 2048 (32 compute units)
- Memory: 4GB GDDR5 @ 8GHz effective speed – memory interface: 256-bit
- Texture units: 128
- ROPs: 32
- TDP: 150W
- Price: $169
Radeon RX 560
- GPU: Polaris 11 (base: 1175MHz, boost: 1275MHz) – process: 14nm
- Shader cores: 1024 (16 compute units)
- Memory: 4GB GDDR5 @ 7GHz effective speed – memory interface: 128-bit
- Texture units: 64
- ROPs: 16
- TDP: 70W
- Price: $120

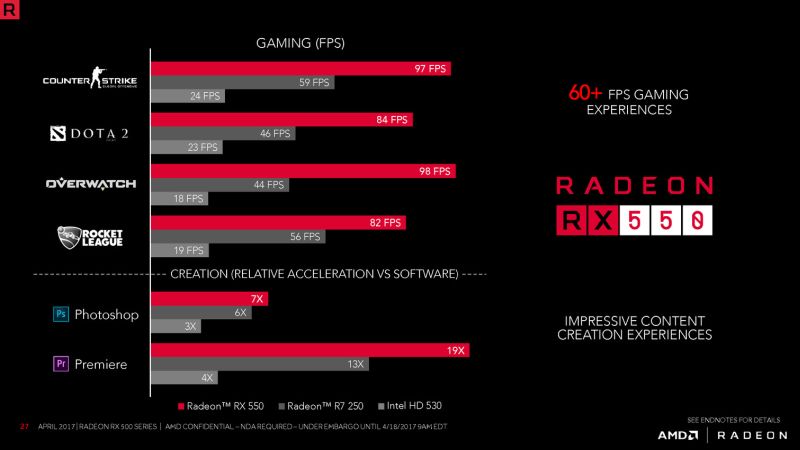

Radeon RX 550
- GPU: Polaris 12 (base: 1183MHz) – process: 14nm
- Shader cores: 512 (8 compute units)
- Memory: 2GB GDDR5 @ 7GHz effective speed – memory interface: 128-bit
- Texture units: 32
- ROPs: ??
- TDP: 50W
- Price: $79
