Intel Ivy Bridge HD Graphics 4000 Extra Tests

2012/04/30 JeGX

Intel Ivy Bridge Processor

As requested by some readers in the Intel Ivy Bridge HD Graphics 4000 GPU: OpenGL and OpenCL Tests article, here some additional tests of the HD Graphics 4000, the GPU embedded in the Ivy Bridge processor.

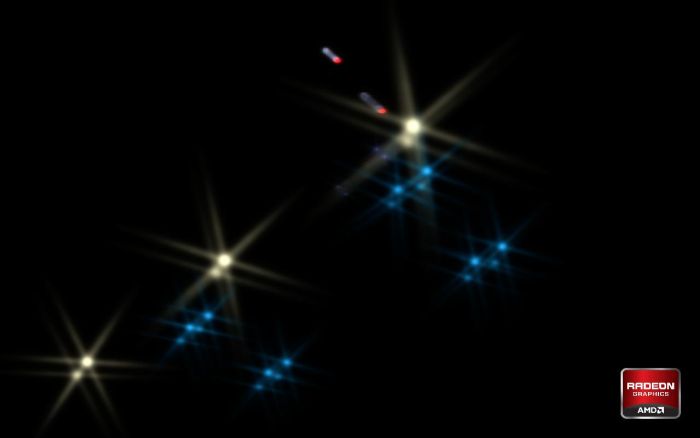

AMD HK2207 DX11 demo

HK2207 is a Direct3D 11 tech-demo for AMD Radeon HD 6900 series. Unfortunately, on Intel’s HD 4000, only few flares are visible:

AMD HK2207 DX11 demo

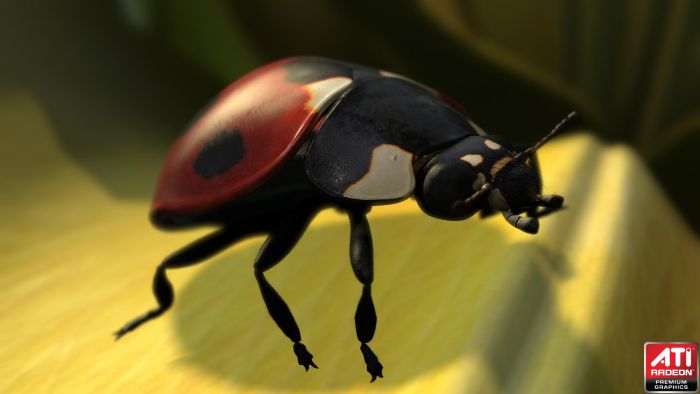

AMD LadyBug DX11 demo

LadyBug is a Direct3D 11 tech-demo released for the Radeon HD 5800 series. Good news, this demo works fine on the HD 4000. But it runs very very slowly: around 1 FPS…

AMD LadyBug DX11 demo

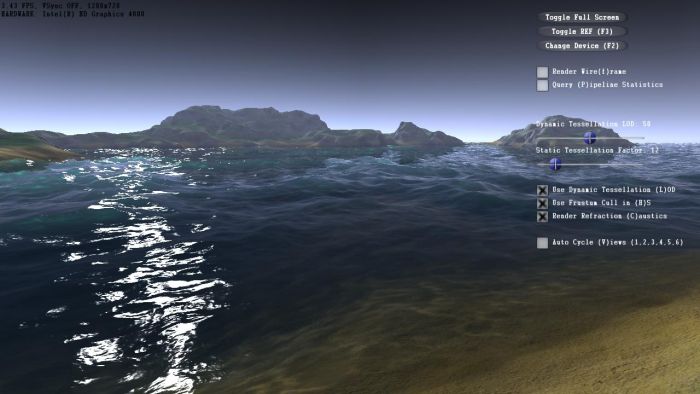

NVIDIA Island DX11 tessellation demo

Island is a Direct3D 11 tessellation-focused tech-demo released for the GeForce GTX 480 / GTX 470. This demo runs at around 3 FPS on the HD 4000.

NVIDIA Island DX11 demo

3DMark11 DX11 benchmark

I tested the Entry (E) and Performance (P) scores only:

Intel Ivy Bridge HD 4000 - 3DMark11 Entry score

Intel Ivy Bridge HD 4000 - 3DMark11 Performance score

Unigine Heaven 2.1 DX11 test

I tested Heaven 2.1 with default settings.

Intel Ivy Bridge HD 4000 - Unigine Heaven

GPCBenchmarkOCL OpenCL test

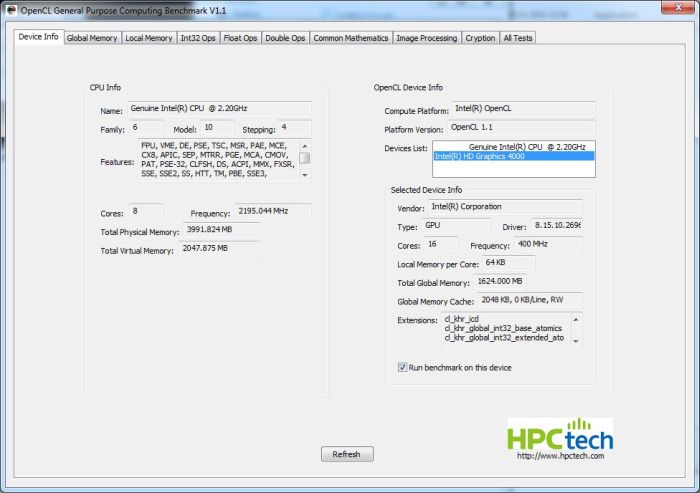

GPCBenchmarkOCL is an OpenCL 1.1 test. It includes different OpenCL tests:

Intel Ivy Bridge HD 4000 - GPCBenchmarkOCL OpenCL test

Intel Ivy Bridge HD 4000 - GPCBenchmarkOCL OpenCL test

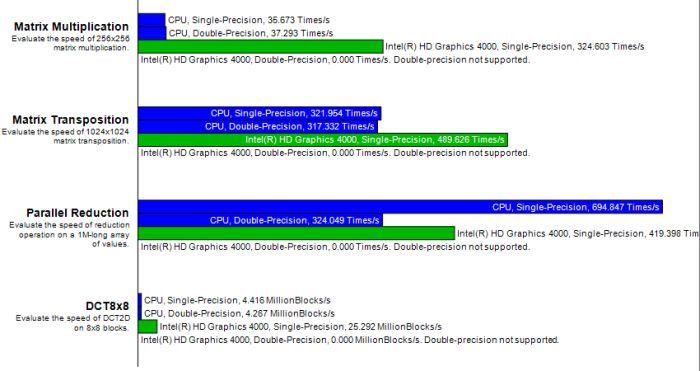

Common maths test: works fine.

Intel Ivy Bridge HD 4000 - GPCBenchmarkOCL OpenCL test
Int32 test: works fine.

Intel Ivy Bridge HD 4000 - GPCBenchmarkOCL OpenCL test

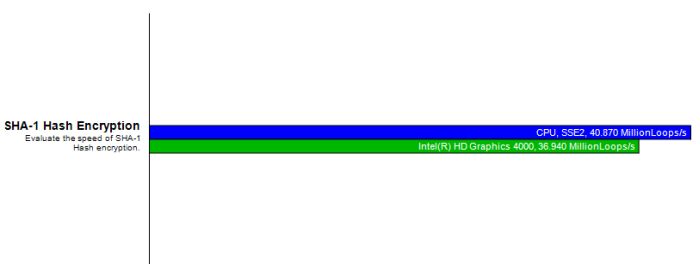

SHA1 test: works fine.

Intel Ivy Bridge HD 4000 - GPCBenchmarkOCL OpenCL test

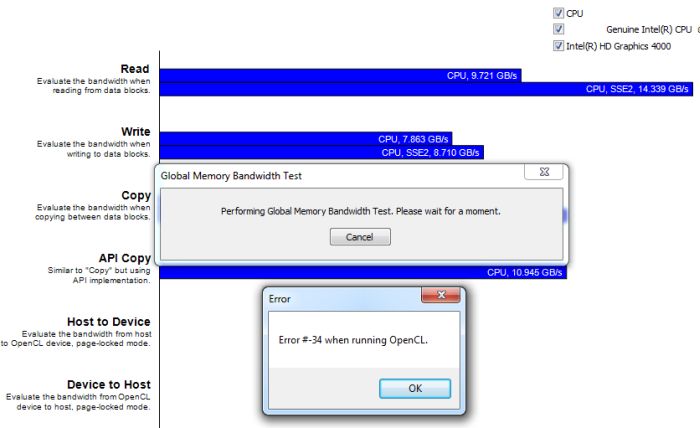

Global memory test: does not work.
