AMD Radeon HD 6870 Launch Day: Meet Barts XT

2010/10/22 JeGX

AMD Radeon HD 6870

One year after the release of the Radeon HD 5870, their first generation of DX11 graphics cards, AMD launches today the second generation: the Radeon HD 6870. BUT guys, this HD 6870 is just an overview of the brand new Radeon HD 6000. Serious things will really start with the Radeon HD 6900 series in November… Then, while Radeon HD 5870 was AMD’s flagship HD 5000, Radeon HD 6870 can be seen as the refresh of the Radeon HD 5850 AND the real target of the HD 6870 is NVIDIA GeForce GTX 460.
The Radeon HD 6870 is priced at USD $239.

AMD Radeon HD 6870

Specifications

After days of speculations and rumors, here are the official specifications of the HD 6870:

GPU: Barts XT @ 900MHz, 1.7 billion transistors, TSMC 40nm
Scalar processors: 1120
Geometry throughput: 900 million polygons / sec
Memory: 1024MB GDDR5 @ 4200MHz effective or 2100MHz DDR or 1050MHz real speed, 256-bit (see HERE for memory speed details)
Color ROPs: 32
Z / stencil ROPs: 128
Texture units: 56
TDP: 151W (idle: 19W)
Power connectors: two 6-pin
3D APIs: OpenGL 4 and Direct3D 11
GPU Computing: OpenCL 1.0, DirectCompute 11

HD 6870, GPU-Z

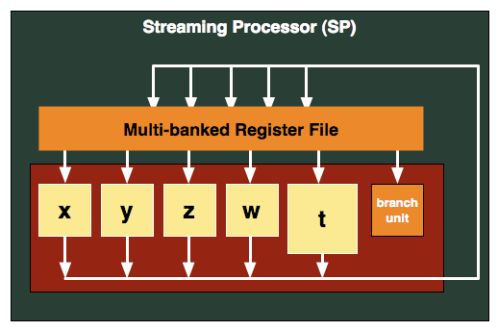

Barts XT GPU still use a vec5 type streaming processor:

HD 6870 Bart XT streaming processor

4 scalars processors for FP32 MAD operations and one scalar processor (SFU or special function unit) for math functions (sin, sqrt, etc.). FP64 is not support in Barts XT…

Barts XT is made up of 14 SIMD engines. Each SIMD engine has then 1120/14 = 80 scalar processors. In OpenCL terms, The Radeon HD 6870 has 14 compute units and 80 processing elements per compute unit.

OpenGL Performances

1 – OpenGL 2 performances with FurMark 1.8.2

HD 6870, OpenGL 2, FurMark
source

Furmark shows the AMD Radeon HD 6870 and the Radeon HD 5850 having identical performance in this OpenGL benchmark.

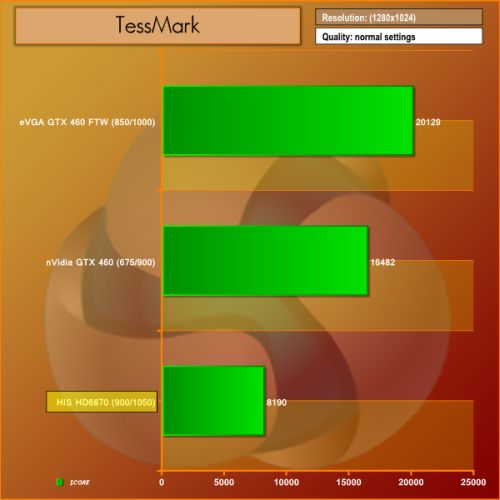

2 – OpenGL 4 tessellation performances with TessMark

HD 6870, OpenGL 4, TessMark
source

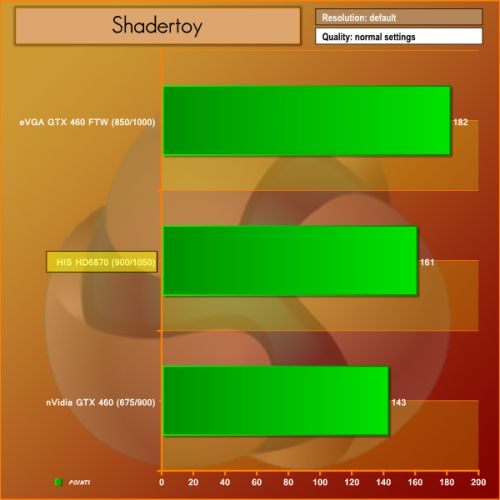

3 – OpenGL 2 pixel shader performances with ShaderToyMark

HD 6870, OpenGL 2, ShaderToyMark
source

Direct3D Performances

HD 6870, Direct3D 11, Unigine Heaven
Direct3D 11, source

HD 6870, Direct3D 11, Far Cry 2
Direct3D 10, source

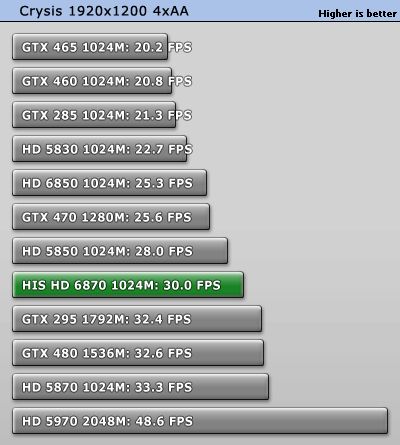

HD 6870, Direct3D 10, Crysis
Direct3D 10, source

Power consumption and temperature

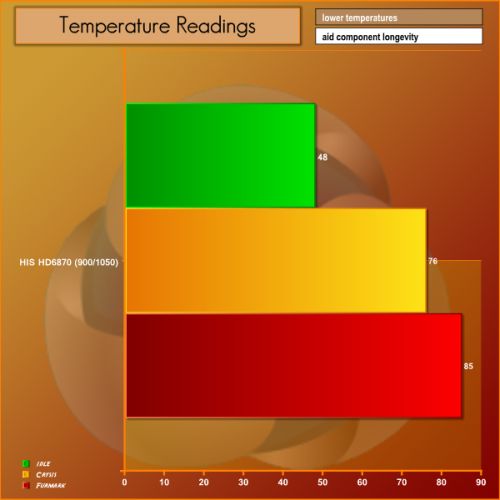

Under FurMark and depending on the card or website that did the test, the Radeon HD 6870 reaches a GPU temperature ranging 81°C to 85°C (Crysis: 72°C to 76°C).

HD 6870, FurMark, GPU temperature
source

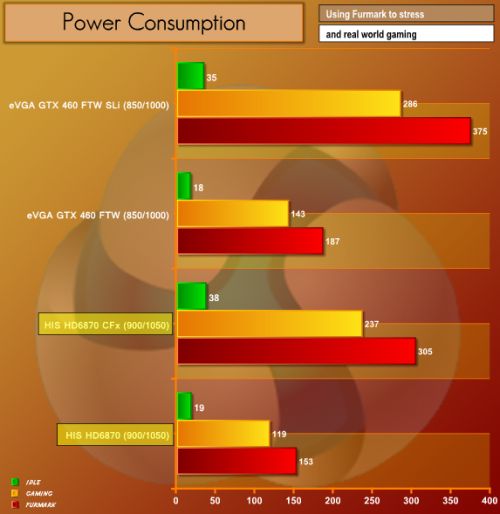

And the power consumption, still under FurMark is around 150W:

HD 6870, FurMark, power consumption
source

This is also confirmed by Legit Reviewsand [H]ard|OCP.

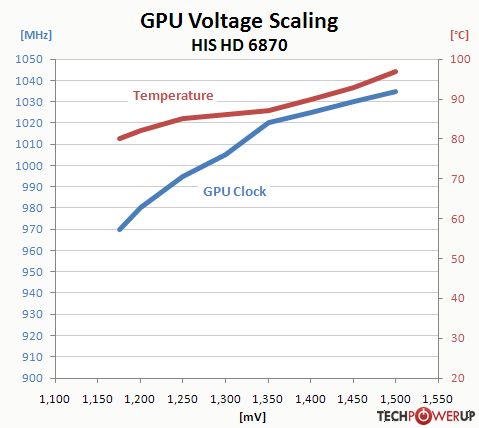

I found this cool graph showing the relation between GPU voltage (VDDC), GPU temperature and GPU core clock:

HD 6870, GPU voltage scaling
source

Conclusion

Guru3D: The Radeon HD 6870 is as far as I am concerned, definitely the more interesting card. It does have a handful more shader processors over what we expected initially, and armed with a phat 900 MHz clock frequency this product simply makes really good sense. It will bring a lot of value to the table but will also allow you to play your games at 1920×1200 extremely well. From a price point of view that makes this product really nice. AMD needed two GeForce GTX 460 cards of their own … and these are it. Bare in mind though, coming from an R5870 you’d be taking a small perf step down.
For 249 USD / 209 EUR the R6870 is positioned against the GeForce GTX 460 with 1024MB graphics memory, now the R6870 is faster, however NVIDIA will pull their trump card, the GeForce GTX 470 and lower its price on that product, significantly I must add.
[H]ard|OCP: The Radeon HD 6870 offers a performance upgrade at $239, providing better than Radeon HD 5850 performance. It isn’t a Radeon HD 5870 killer, but then it isn’t supposed to be, that will come later. The Radeon HD 6870 fills a hole that the Radeon HD 5830 has never truly filled in. The HD 6870 with better performance, and lower prices; the sub-$250 price point just became very interesting.
Legit Reviews: The AMD Radeon HD 6800 series of video cards retains Radeon HD 5800-class performance, but brings new features and better efficiency to the table.
techPowerUp: Overall, this is the card to get if you have around $240 to spend, and are looking at a product that is a long-term investment. If you are looking for the best bang for the buck then the HD 6850 should be on your shopping list.

Reviews

Radeon HD 6870 Round-up

MSI R6870
source

HIS R6870
source
