AMD Radeon RX Vega GPUs Family Launched (RX Vega 64, RX Vega 56)



Radeon RX Vega 64 graphics card

AMD has officially unveiled the Radeon RX Vega family of consumer graphics cards based on the new Vega 10 GPU architecture. The Radeon RX Vega lineup will play in +$300 market while the Polaris-based graphics cards (Radeon RX 400 / 500 series) are rather intended to the lower-end of the performance-segment.



AMD is launching three Radeon RX Vega graphics cards that should be available on August 14th 2017:
1 – RX Vega 64 top version (Liquid Cooled)
2 – RX Vega 64 standard version (Air Cooled)
3 – RX Vega 56 cut down version

1 – Radeon RX Vega 64 Liquid Cooled Edition – USD $699

  • GPU: Vega 10, base clock: 1406MHz, boost clock: 1677MHz, process GloFo 14nm, transistor count: 12.5B
  • Architecture: GCN 5.0
  • Compute units: 64
  • Stream processors: 4096
  • Texture units: 256
  • ROPs: 64
  • Memory: 8GB of HBM2 memory, clocked at 1.89Gbps, interface: 2048-bit
  • TDP: 345W
  • FP32 processing power: 13.7 TFLOPS

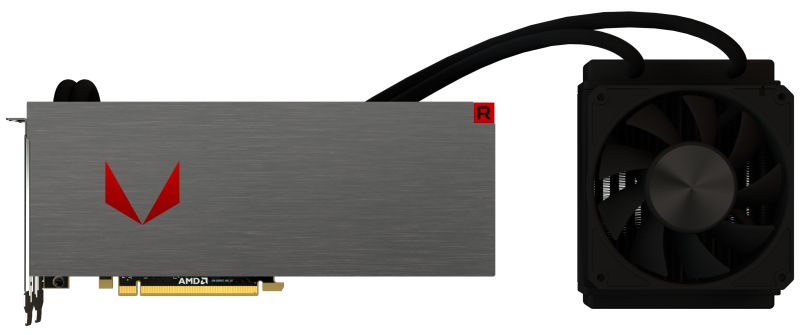

Radeon RX Vega 64 Liquid Cooled Edition

2 – Radeon RX Vega 64 Air Cooled Edition – USD $499/$599

  • GPU: Vega 10, base clock: 1247MHz, boost clock: 1546MHz, process GloFo 14nm, transistor count: 12.5B
  • Architecture: GCN 5.0
  • Compute units: 64
  • Stream processors: 4096
  • Texture units: 256
  • ROPs: 64
  • Memory: 8GB of HBM2 memory, clocked at 1.89Gbps, interface: 2048-bit
  • TDP: 295W
  • Reference board: USD $499
  • Limited Edition board: USD $599
  • FP32 processing power: 12.6 TFLOPS

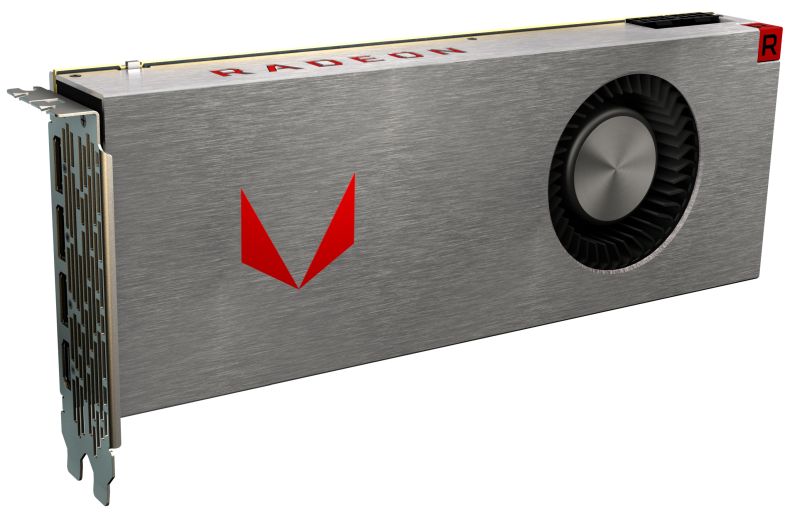

Radeon RX Vega 64 Air Cooled Edition

3 – Radeon RX Vega 56 Air Cooled Edition – USD $399

  • GPU: Vega 10, base clock: 1156MHz, boost clock: 1471MHz, process GloFo 14nm, transistor count: 12.5B
  • Architecture: GCN 5.0
  • Compute units: 56
  • Stream processors: 3584
  • Texture units: 224
  • ROPs: 64
  • Memory: 8GB of HBM2 memory, clocked at 1.89Gbps, interface: 2048-bit
  • TDP: 210W
  • FP32 processing power: 10.5 TFLOPS

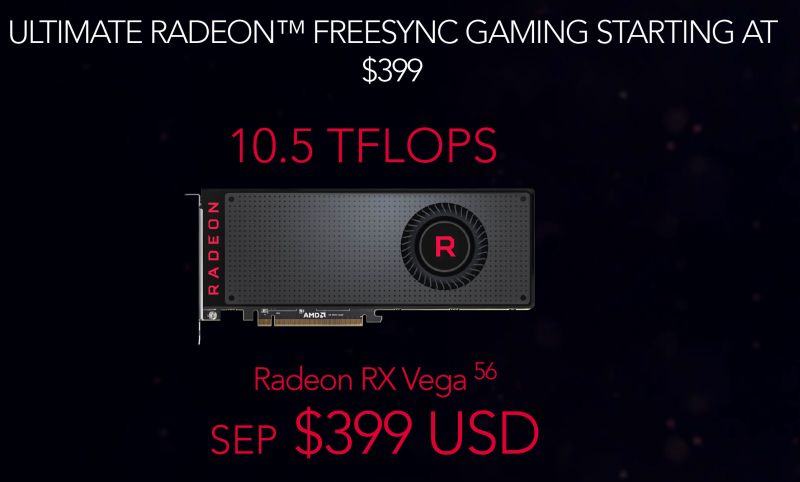

Radeon RX Vega 56


Radeon RX Vega - PCB detail

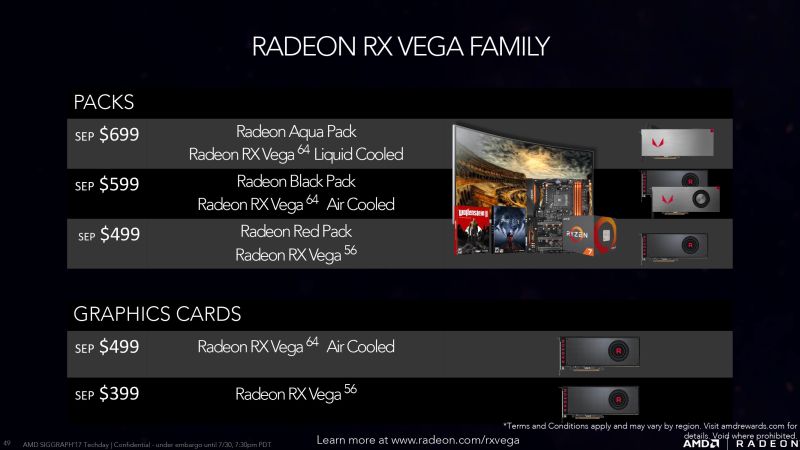

Radeon RX Vega family prices
Radeon RX Vega 64 new features
Radeon RX Vega 64 - D3D12 support
