AMD Radeon R9 290X: More Details about Hawaii GPU

AMD Radeon R9 290X: Hawaii GPU Details

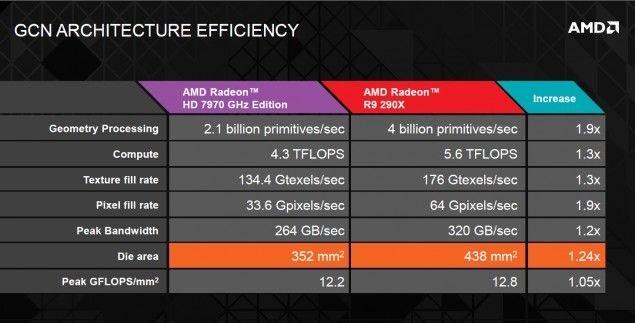

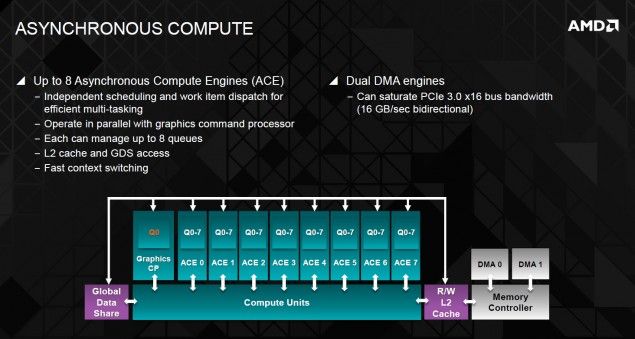

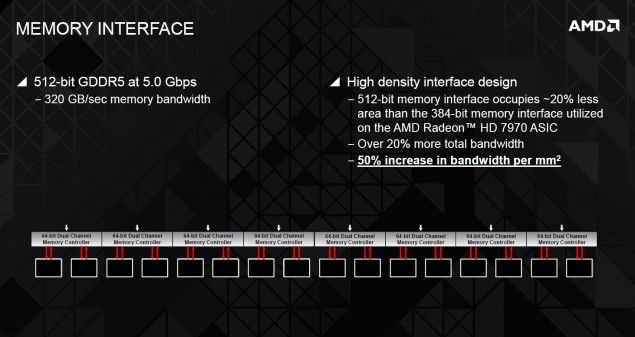

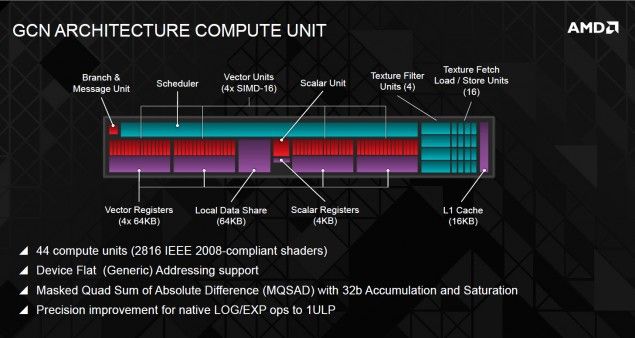

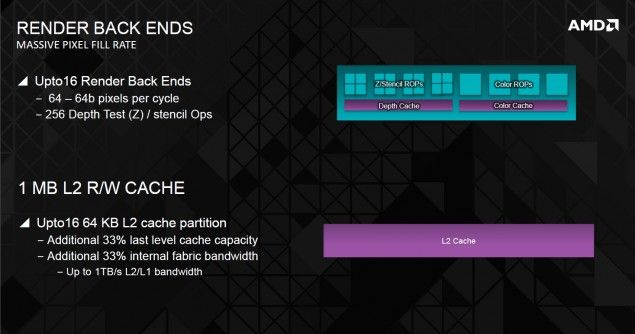

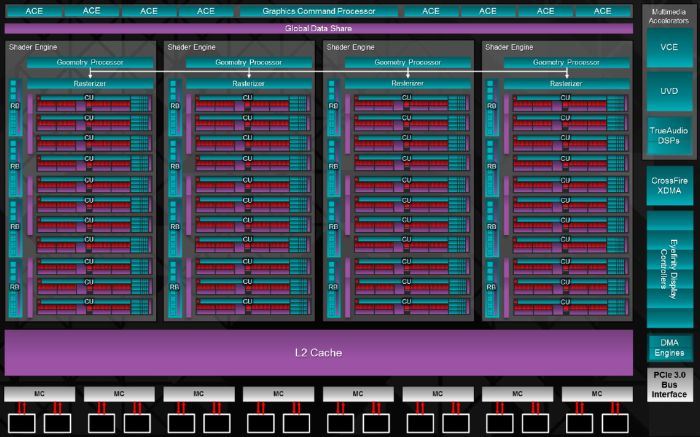

Here are some new slides about the architecture of the Hawaii GPU (Volcanic Islands) that powers the Radeon R9 290X and R9 290. The Hawaii GPU is based on the new GCN 2.0 architecture with 2816 shader processors distribued over 44 compute units. The GPU has 176 texture units, 64 ROP units, 8 memory controllers (MC) connected to 4GB of GDDR5 memory with a 512-bit bus width.

AMD Radeon R9 290X: Hawaii GPU Details
High resolution version available here


AMD Radeon R9 290X: Hawaii GPU Details

AMD Radeon R9 290X: Hawaii GPU Details

AMD Radeon R9 290X: Hawaii GPU Details

AMD Radeon R9 290X: Hawaii GPU Details

AMD Radeon R9 290X: Hawaii GPU Details






And if this last slide is not a fake, the R9 290X will empty your bank account…

AMD Radeon R9 290X prices



via | via
