NVIDIA GeForce GTX 780 Officially Launched



NVIDIA GeForce GTX 780


1 – Overview

NVIDIA has launched its new baby, the GeForce GTX 780, based on a cut-down version of the GK110 GPU (the one behind the GeForce GTX Titan). The GTX 780 is the successor of the GTX 680 and is priced at around USD $650. Graphics card makers can customize the board and VGA cooler, which was not possible with the GTX Titan.

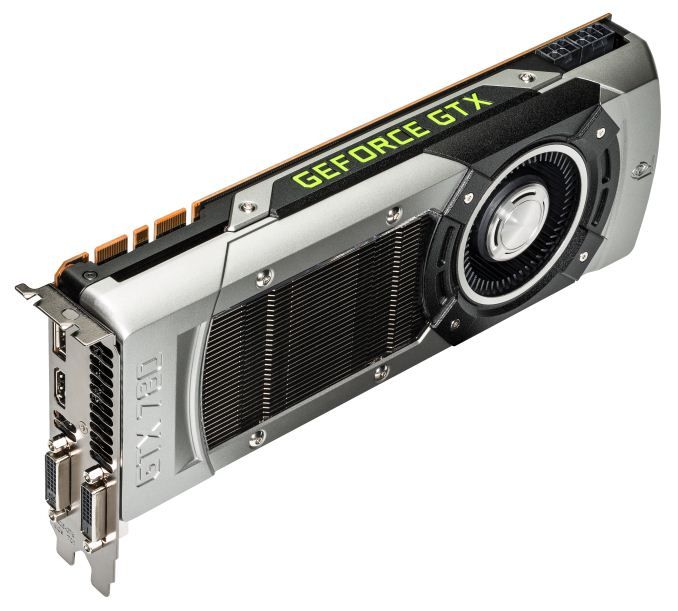

NVIDIA GeForce GTX 780

NVIDIA GeForce GTX 780



GeForce GTX 780 main specifications

  • GPU: GK110 @ 837MHz (base clock) / 876MHz (boost clock), TSMC 28nm, 7.1 billion transistor
  • CUDA cores: 2304
  • Stream multiprocessors (SMX): 12 (192 CUDA cores per SMX)
  • Texture units: 192 (16 TMUs per SMX)
  • Color ROP units: 48
  • Memory: 3GB GDDR5 @ 6GHz effective speed, 384-bit memory bus width
  • TDP: 250W
  • Power connectors: one 6-pin and one 8-pin

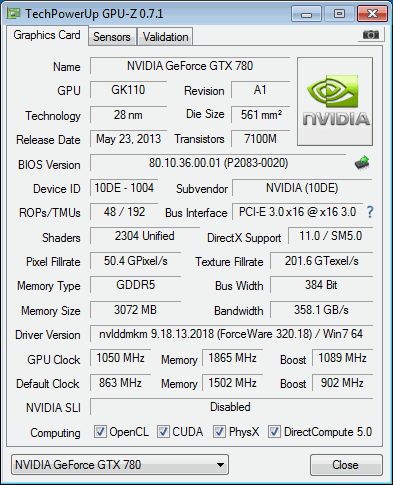

NVIDIA GeForce GTX 780, GPU-Z

NVIDIA GeForce GTX 780, TessMark OpenGL 4 tessellation test
source

NVIDIA GeForce GTX 780, FurMark burn-in test
source

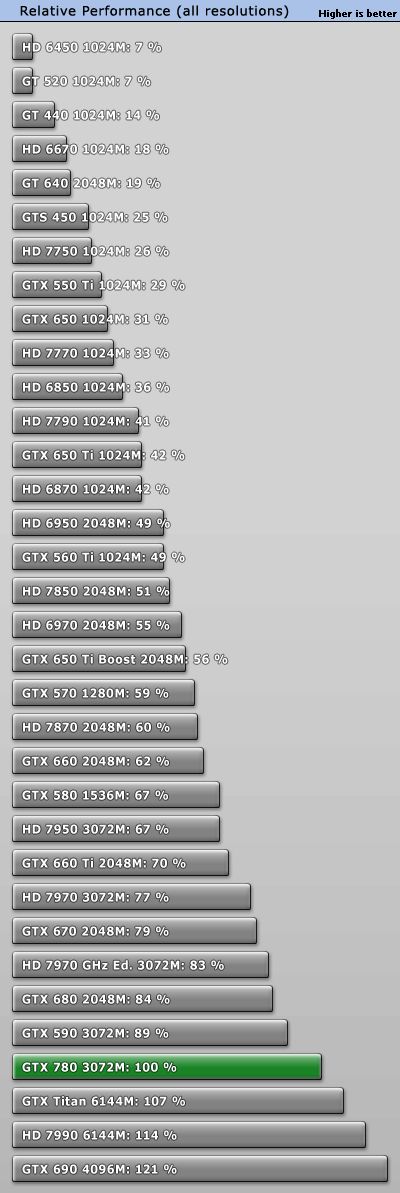

NVIDIA GeForce GTX 780, performance
source

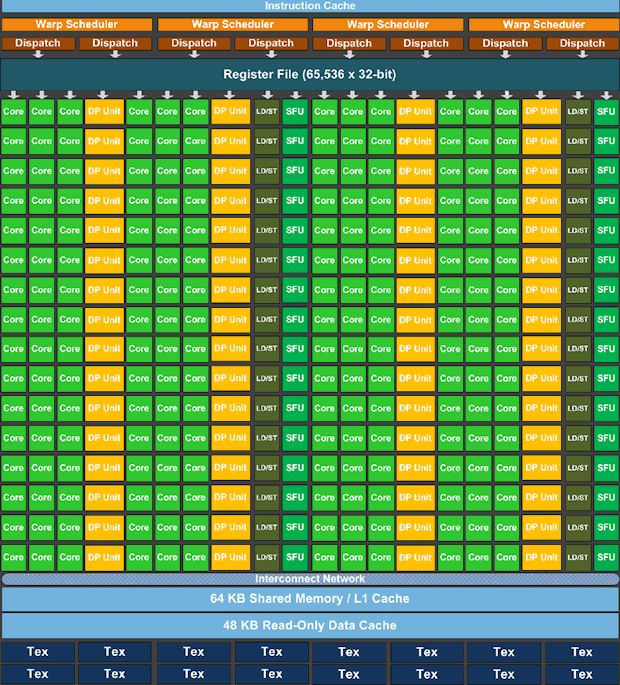

NVIDIA GeForce GTX 780, SMX
The GTX 780 has 12 SMX like this one


2 – Reviews

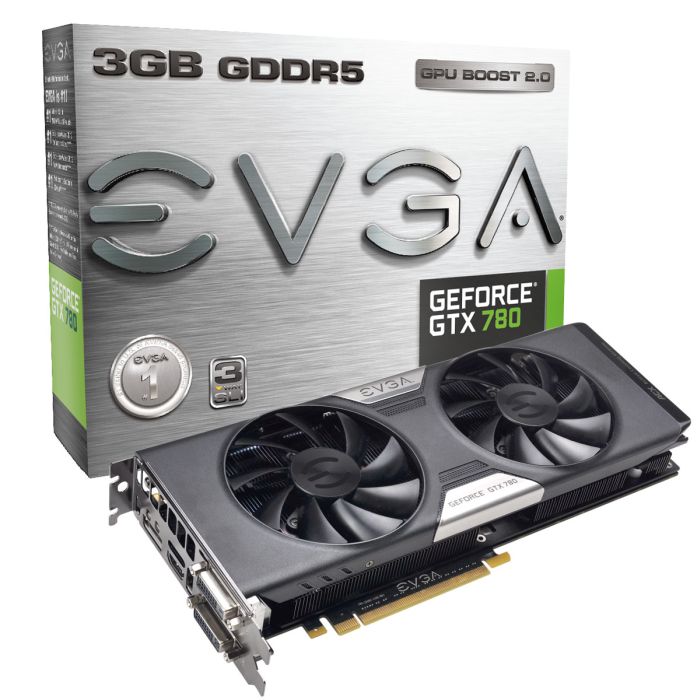

EVGA GTX 780 with ACX cooler
EVGA GTX 780 with ACX cooler
