NVIDIA GeForce GTX 680 (Kepler GK104 GPU) Officially Launched


NVIDIA GeForce GTX 680



GeForce GTX 680 Overview

Here we are, NVIDIA has officialy launched the GeForce GTX 680 based on the Kepler GK104 GPU. This card packs a bunch of new features (and some of them can be tweaked with some line of code!) such as GPU Boost (dynamic clocking depending on GPU load), adaptive VSYNC, bindless textures, new power management functions (Power Target), TXAA (temporal anti-aliasing), NVENC (encoding engine) and optimized power consumption. The architecture has been changed (no double speed anymore for shader processors, this is the new SMX unit) and priced at USD $499, this card targets AMD Radeon HD 7900 series.

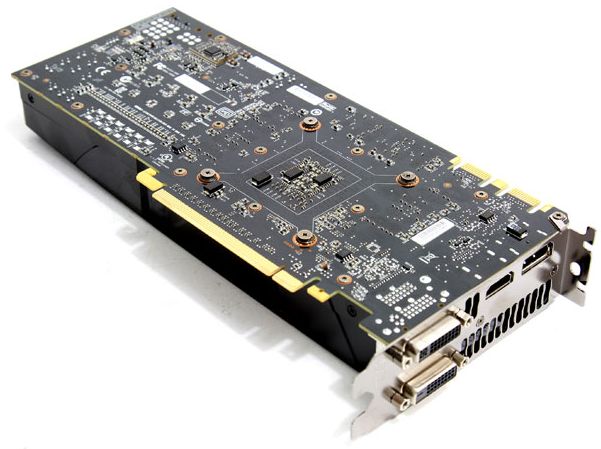

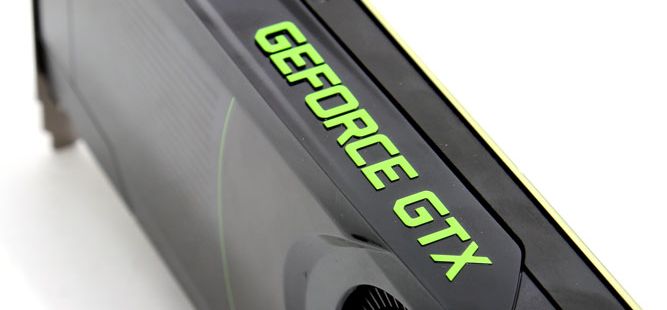

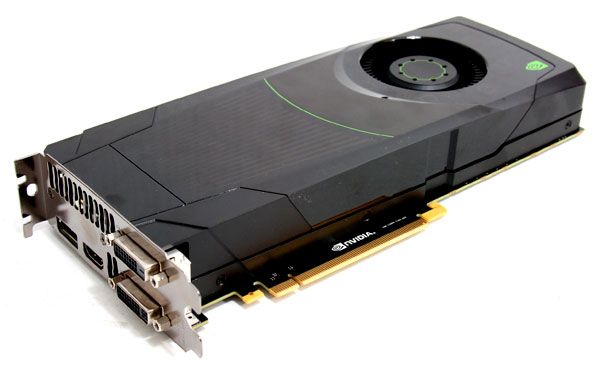

NVIDIA GeForce GTX 680

NVIDIA GeForce GTX 680

NVIDIA GeForce GTX 680



Here are the main features of the GeForce GTX 680:

  • GPU: Kepler GK104 @ 1006MHz (base clock) or 1058MHz (boost clock), 28nm TSMC
  • Shader processors (CUDA cores): 1536
  • Streaming Multiprocessor-X (SMX): 8 (192SP per SMX)
  • Memory: 2048MB GDDR5 @ 1058MHz real speed or 4232MHz effective, 256-bit
  • Color ROP units: 32
  • Texture units: 128
  • TDP: 195W

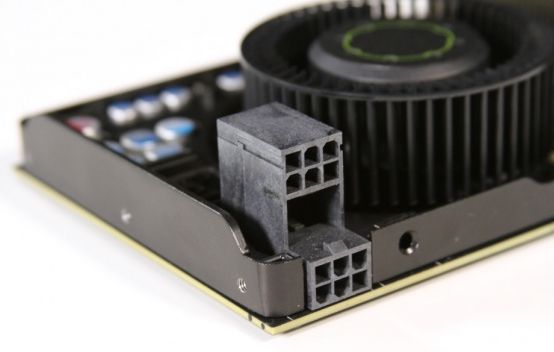

  • Power connectors: two 6-pin
  • 3D APIs: OpenGL 4.2, Direct3D 11.1
  • GPU computing: OpenCL 1.2, CUDA, PhysX and DirectCompute
  • Bus interface: PCI-Express 3.0
  • Price: USD $499

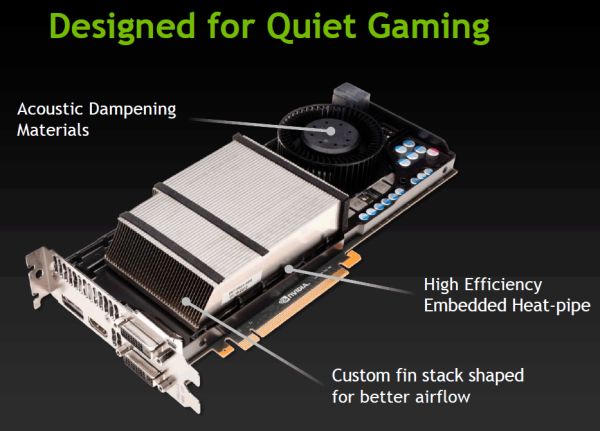

NVIDIA GeForce GTX 680, reference vga cooler



Kepler GK104 GPU architecture:

NVIDIA GeForce GTX 680, VSYNC tearing

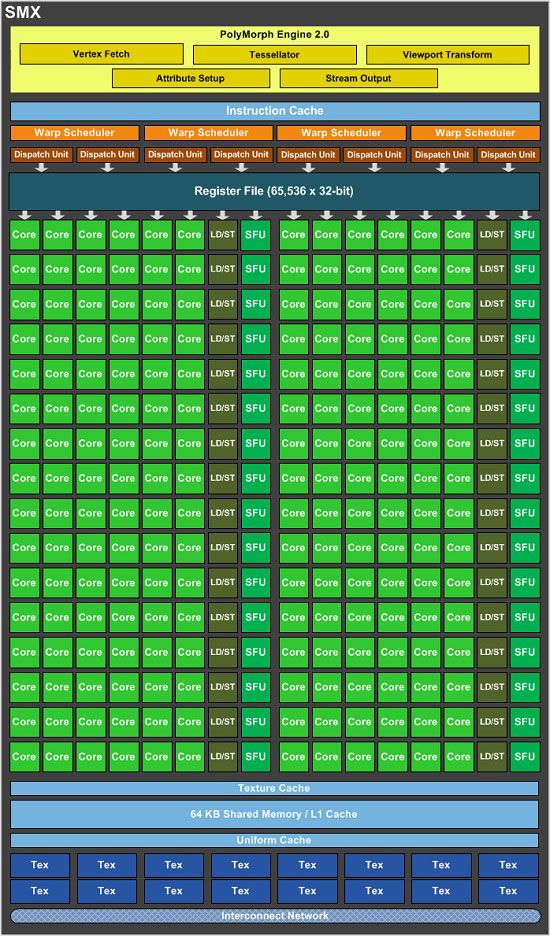

NVIDIA GeForce GTX 680, SMX

Adaptive VSYNC (vertical synchronization):

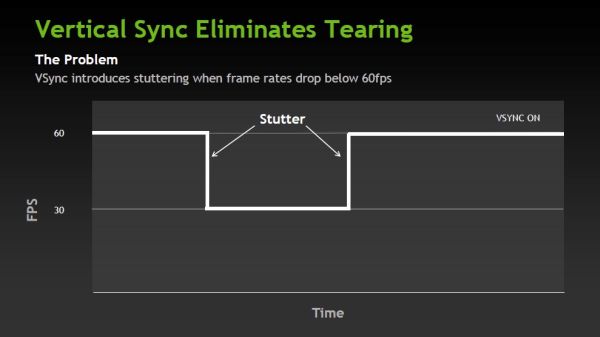

NVIDIA GeForce GTX 680, VSYNC tearing

NVIDIA GeForce GTX 680, adaptive VSYNC



Bindless Textures:

NVIDIA GeForce GTX 680, Bindless textures

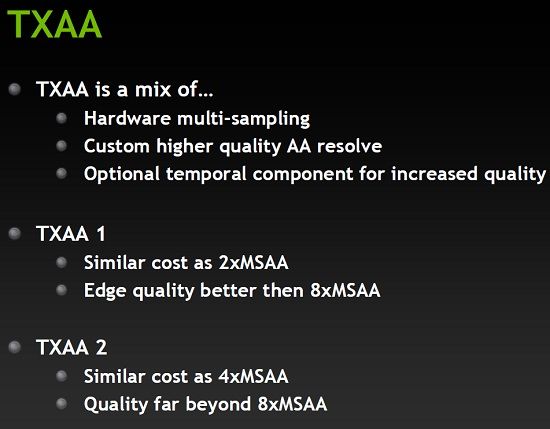

TXAA: Temporal Anti-Aliasing

NVIDIA GeForce GTX 680, TXAA

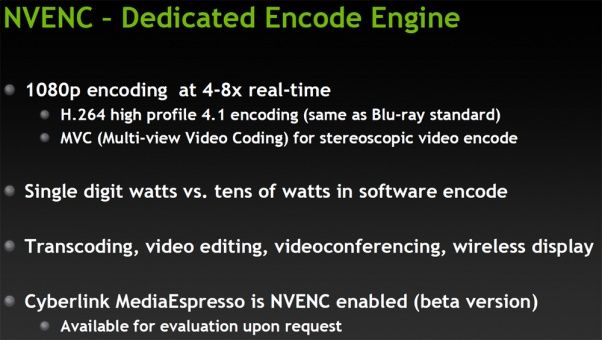

NVENC: dedicated encoding engine

NVIDIA GeForce GTX 680, TXAA


GeForce GTX 680 Performances

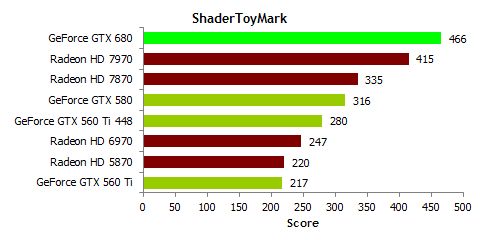

NVIDIA GeForce GTX 680, ShaderToyMark performance
ShaderToyMark 0.3.0 (source)

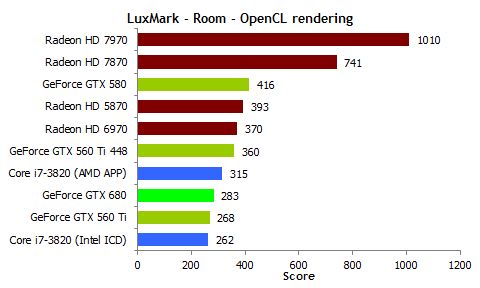

NVIDIA GeForce GTX 680, OpenCL performance
source

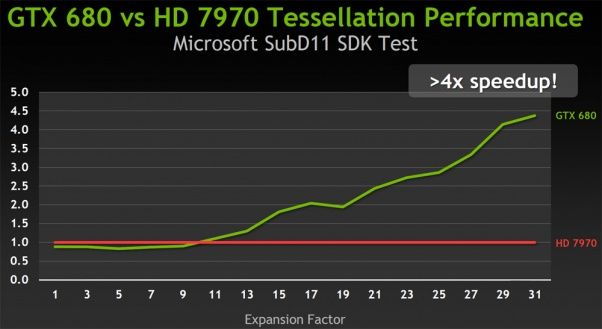

NVIDIA GeForce GTX 680, Tessellation

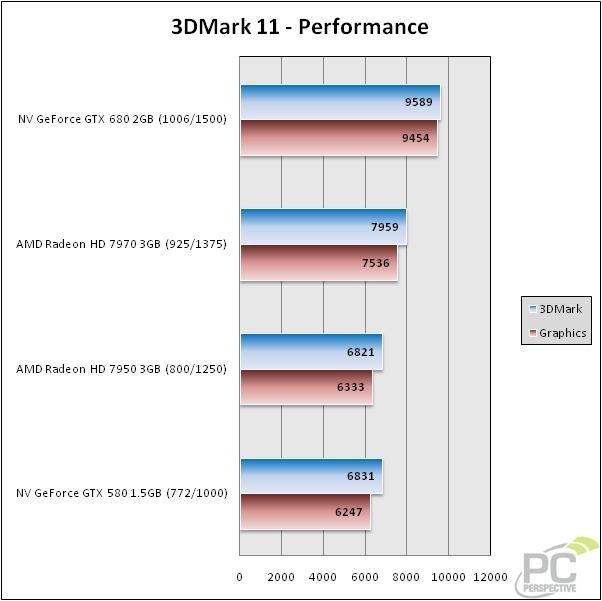

NVIDIA GeForce GTX 680, 3DMark11
source

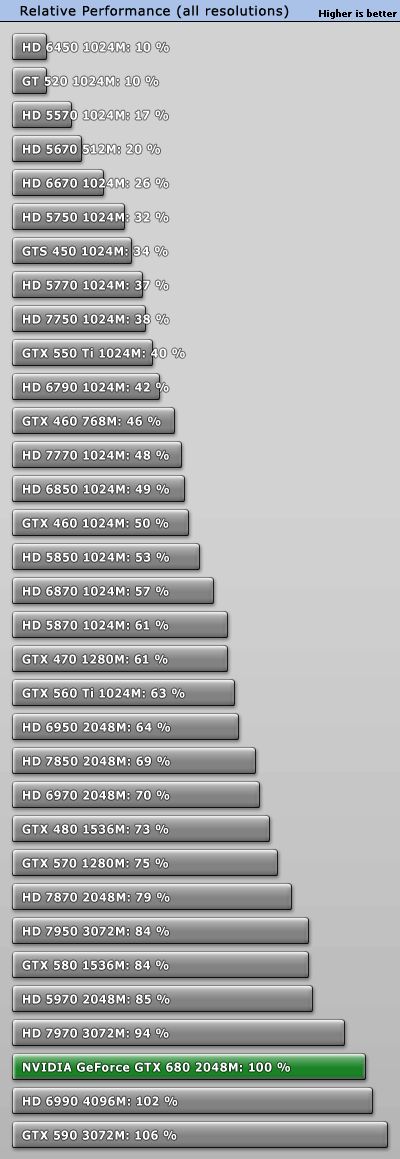

NVIDIA GeForce GTX 680, performances
source


GeForce GTX 680 Reviews
