GeForce GTX 680: New Pictures and First Tests (Noise, Temperature, OpenCL)

GeForce GTX 680 board

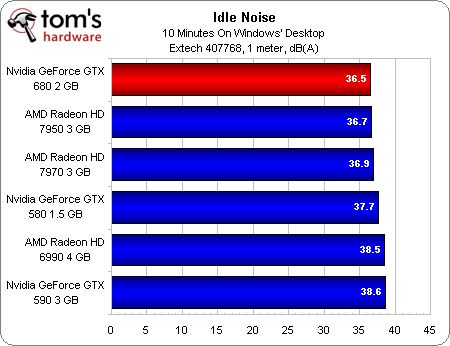

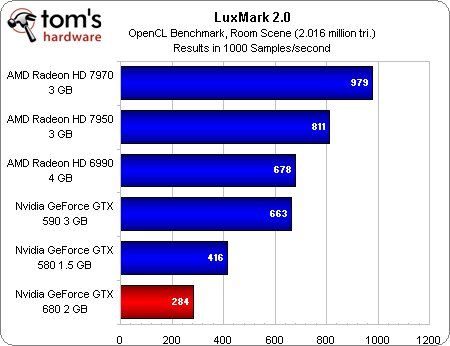

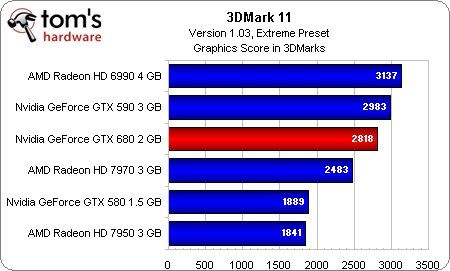

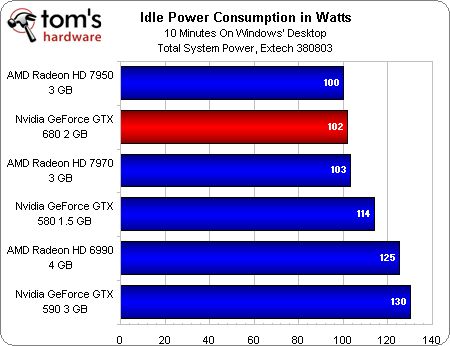

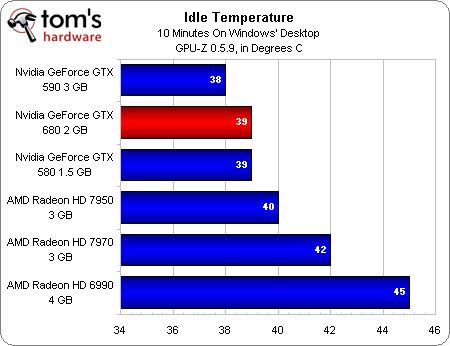

The wait for the new baby of the green firm seems to be unbearable for some people. The guys at redquasar have posted a new picture of the GTX 680 while Tom’s hardware has lost some results of their ready-to-publish review of the GK104-based video card (maybe they’re fake results, so take them with grain of salt as usual):

GeForce GTX 680

GeForce GTX 680

GeForce GTX 680

GeForce GTX 680

GeForce GTX 680

GeForce GTX 680

Other charts are available HERE.

Yesterday, I saw this screeny of the R300.65 driver:

GeForce GTX 680 - R300.65

And in redquasar thread, there is a GPU-Z 0.6.0 screenshot with another new R300.99 driver

GeForce GTX 680 - R300.99

Can’t wait to see the new OpenGL extensions exposed by R300 family…

source | source


  • Mars_999

    OUch LuxMark beats down the 680???

  • Squall Leonhart

    luxmark is double precision heavy, being originally intended for the midrange(performance) sector, and not as the enthusiast top end, the GK104 has the usual gimped double precision that goes with it.

  • fellix

    I see NV still haven’t fixed the performance issues in their OCL 1.1 run-time even in the hot new R300 branch of drivers.

    @Squall Leonhart — LuxRender’s path-tracer does not use DP math.

  • SolarFox

    Most ppl can`t even imagine how many ppl bought (even bunch of) ATI`s GPU just because of OpenCL performancce and they never play games. Just using them to calculate some things…
    If you ask me, Ati should look on OpenCL performance much more in future.

  • Leith Bade

    Hmm I am more interested in GK110 at this stage.

    This is just a rebranded 660.

  • Promilus

    @SolarFox – in most OpenCL apps VLIW architecture’s performance is disappointing. The only ones which get the best of that architecture are simple math calculation (shifts, logical operations, additions) like bitmining, pass recovery (or cracking for that matter) etc. Many ppl bought radeons just for their DP performance (e.g. for milkyway which wasn’t OpenCL, don’t know if it is now). Many for pass cracking (and cell phone SL3 cracking).

  • Nick

    @Promilus – But NV has switched to scalar architecture starting with 8800GTX, a long way back. AMD has just rolled its first scalar GPUs starting with GCN. As far as I know, Lux is on single precision, so the GTX680 score is a bit of a disappointment.

  • Michal

    I don’t understand why GTX 680 would be slower than GTX 580 in Lux… This result is very strange in my opinion. It may be because of very early drivers.

  • fellix

    The lower score in LuxMark against the old GTX580 may also be due to the smaller amount of local memory share in GK104 — 384KB vs. 768KB in GF110. Although the raw computational throughput in Kepler has been bumped twice, compared to GF110, the on-board memory bandwidth has remained pretty much the same, around 192GB/s. The L2 cache size most probably haven’t been increased, too.

  • atikkur

    i guess gk104 will not be great for compute , just like gf114 meant to be.

  • Mars_999

    This is kind of a deal breaker for me unless this card is cheap… I am not paying $500+ for a card that has crappy OpenCL performance. I pay $500 I expect total performance on all fronts. Looks like a MSI Lighting 7970 could be in the next build… I heard that the 256bit bus is the issue… and I want 4GB at least in a 680GTX and 3GB is bare min, as I want the high res texture packs(Rage, Skyrim, ect…) :)

  • lpg 3kg

    This card should be named GTX 660
