AMD Radeon HD 7950 Launched


AMD Radeon HD 7950, reference board

Radeon HD 7950 Overview

AMD has officially launched today the Radeon HD 7950, HD 7970‘s little brother. Like the HD 7970, the HD 7950 is based on a 28nm Tahiti (PRO) GPU with the GCN architecture (Graphics Core Next). The HD 7950 features 28 computes units or 1792 shader processors. Four computes units (or 256 SP) have been disabled compared to the HD 7970.

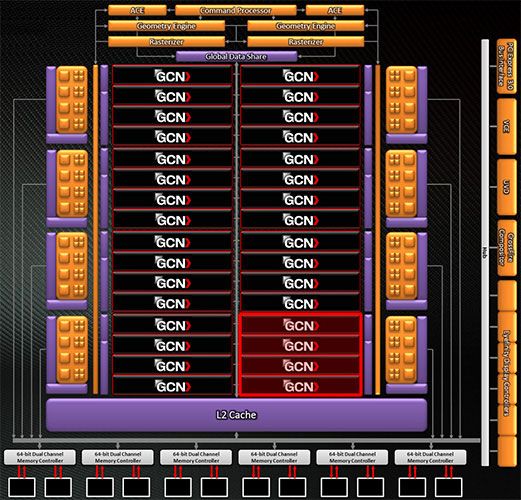

Radeon HD 7950, GPU architecture



The Radeon HD 7950 is around 6% faster than the GeForce GTX 580 and around 17% faster than the Radeon HD 6970 (source). Like the HD 7970, the HD 7950 is rather an expensive graphics card, mainly due to the lack of competitors…

Here are the main features of the Radeon HD 7950:

  • GPU: Tahiti PRO @ 800MHz, 28nm, 4.3 billion transitors, TSMC with HKMG (higk-K metal gate).
  • Shader processors: 1792
  • Compute units: 28 (64 SP per unit)
  • Color ROP units: 32
  • Z/Stencil ROP units: 128
  • Texture units: 112
  • Memory: 3072MB GDDR5 @ 1250MHz real speed (or 5000MHz effective), 384-bit
  • Power connectors: two 6-pin
  • TDP: 200W, PowerTune technology
  • 3D APIs: OpenGL 4.2 and Direct3D 11.1
  • GPU computing: OpenCL 1.2, DirectCompute 11, Microsoft C++ AMP
  • CrossFire: 4-way
  • Price: USD $449

Radeon HD 7950, GPU-Z



Performance

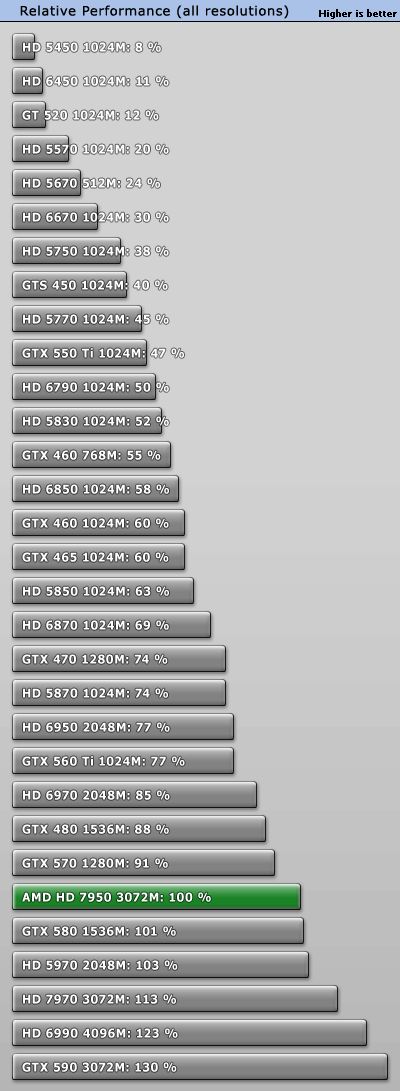

Radeon HD 7950 performance
Radeon HD 7950 performance (source)



Power consumption

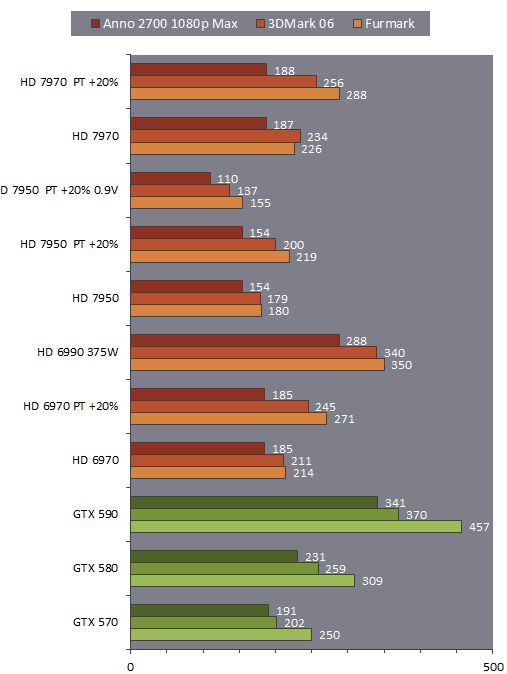

Radeon HD 7950 power consumption
Radeon HD 7950 power consumption (card alone), source


Radeon HD 7950 Reviews


Radeon HD 7950 Partners’ boards

MSI Radeon HD 7950
MSI Radeon HD 7950

MSI Radeon HD 7950
MSI Radeon HD 7950, Twin Frozr 3

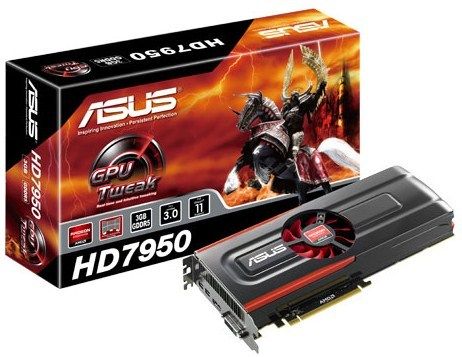

ASUS Radeon HD 7950
ASUS Radeon HD 7950

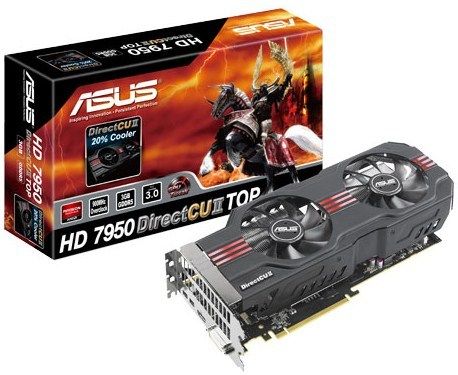

ASUS Radeon HD 7950 DirectCU II Top
ASUS Radeon HD 7950 DirectCU II Top

XFX Radeon HD 7950 Double Dissipation
XFX Radeon HD 7950 Double Dissipation

GIGABYTE Radeon HD 7950
GIGABYTE Radeon HD 7950

HIS Radeon HD 7950
HIS Radeon HD 7950

Sapphire Radeon HD 7950
Sapphire Radeon HD 7950

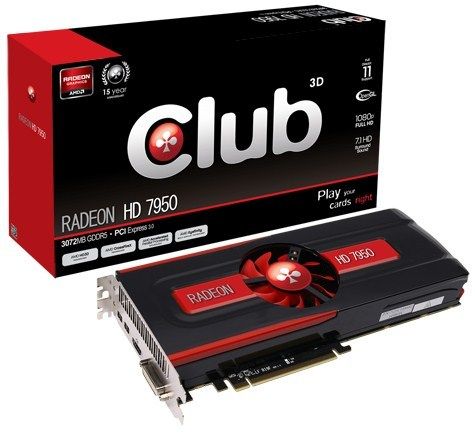

Club3D Radeon HD 7950
Club3D Radeon HD 7950

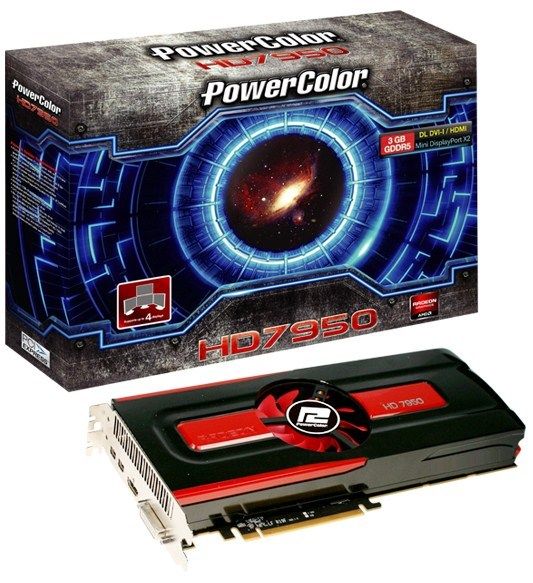

Powercolor Radeon HD 7950
Powercolor Radeon HD 7950

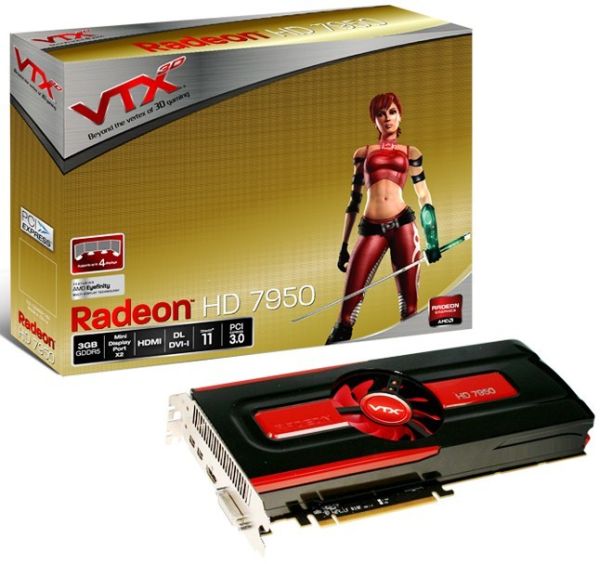

VTX Radeon HD 7950
VTX Radeon HD 7950
