(Shader Library) Simple 2D Effects: Sphere and Ripple in GLSL



GLSL programming


Today, two simple demoscene GLSL tricks: a sphere effect and a ripple effect. Both effects are 2D only and require only few lines of GLSL. These effects can be easily ported in WebGL or in another GLSL-based system (Blender Game engine for example).

I coded two GeeXLab demos and they’re available in GeeXLab code samples pack (Demoscene_Effect_Ripple/ and Demoscene_Effect_Sphere/ folders). You can download the complete code sample pack here: Code Samples Pack.

Just start GeeXLab 2.10.0 (or higher) and load (or drag and drop) the DEMO.xml files in GeeXLab. That’s all!


1 – 2D Sphere effect

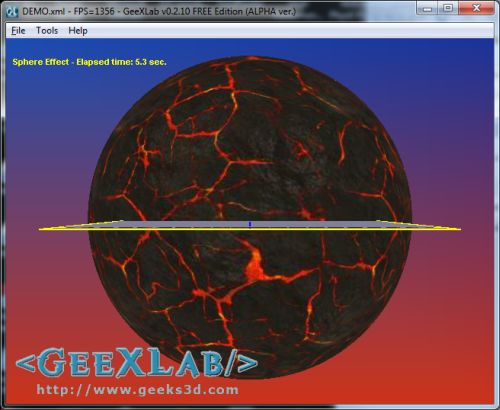

(Shader Library) Simple Sphere Effect in GLSL



This effect is based on Adrian Boeing’s sphere effect in WebGL. I modified the pixel shader in order to have the effect in texture space and not in screen space and I added a discard if pixels are out of the unit disc.

[Vertex_Shader]
void main()
{
	gl_TexCoord[0] = gl_MultiTexCoord0;
	gl_Position = ftransform();
}
[Pixel_Shader]
uniform vec2 resolution; // Screen resolution
uniform float time; // time in seconds
uniform sampler2D tex0; // scene buffer
void main(void)
{
  vec2 tc = gl_TexCoord[0].xy;
  vec2 p = -1.0 + 2.0 * tc;
  float r = dot(p,p);
  if (r > 1.0) discard;
  float f = (1.0-sqrt(1.0-r))/(r);
  vec2 uv;
  uv.x = p.x*f + time;
  uv.y = p.y*f + time;
  gl_FragColor = vec4(texture2D(tex0,uv).xyz, 1.0);
}


2 – 2D Ripple Effect

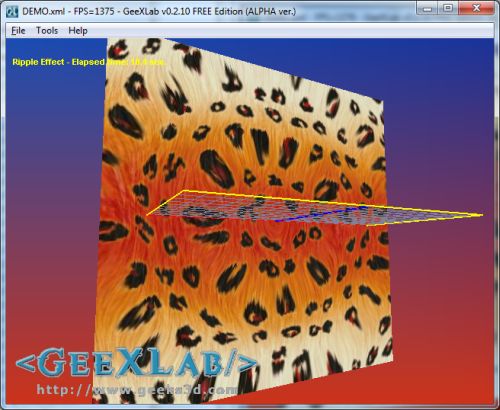

(Shader Library) Simple Ripple Effect in GLSL



Like the sphere effect, this ripple effect is based on Adrian’s post: Ripple effect in WebGL. The ripple effect is based on the sine cardinal or sinc function:

sinc(x) = sin(x) / x

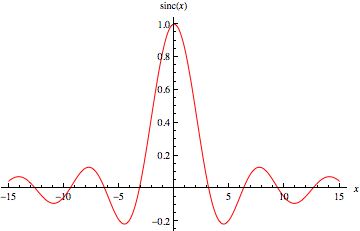

Sine cardinal function


More details here.



Here is the complete GLSL shader for the 2D ripple effect:

[Vertex_Shader]
void main()
{
	gl_TexCoord[0] = gl_MultiTexCoord0;
	gl_Position = ftransform();
}
[Pixel_Shader]
uniform vec2 resolution; // Screen resolution
uniform float time; // time in seconds
uniform sampler2D tex0; // scene buffer
void main(void)
{
  vec2 tc = gl_TexCoord[0].xy;
  vec2 p = -1.0 + 2.0 * tc;
  float len = length(p);
  vec2 uv = tc + (p/len)*cos(len*12.0-time*4.0)*0.03;
  vec3 col = texture2D(tex0,uv).xyz;
  gl_FragColor = vec4(col,1.0);
}
