6 – ASUS GeForce GTX 560 Ti DirectCU II TOP DirectCompute performances

For measuring DirectCompute performances, I simply used the Compute Shaders samples that come with DirectX 11 SDK June 2010.

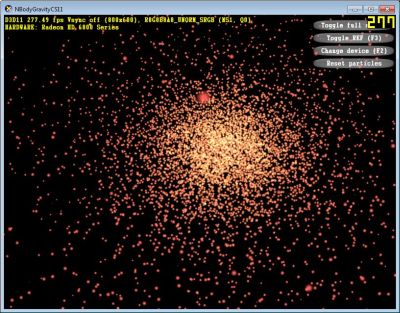

NBodyGravityCS11 DirectCompute 11 demo

NBodyGravityCS11 test, res: default size.

Avg FPS: 382 – EVGA GTX 580 SC
Avg FPS: 376 – ATI Radeon HD 5870
Avg FPS: 374 – ASUS ENGTX580
Avg FPS: 333 – ASUS GeForce GTX 560 Ti DirectCU II TOP
Avg FPS: 317 – Sapphire Radeon HD 6970
Avg FPS: 297 – EVGA GTX 480
Avg FPS: 277 – ASUS EAH6870
Avg FPS: 273 – Sapphire Radeon HD 6870
Avg FPS: 223 – MSI N460GTX Cyclone 768D5 OC
Avg FPS: 198 – MSI R5770 Hawk
Avg FPS: 153 – ASUS Radeon HD 6950

Remark: 153FPS for the HD 6950 is clearly wrong. Certainly due to a bug in Catalyst drivers…

HDRToneMappingCS11 test, res: 1920×1080 windowed.

Avg FPS: 1090 – ASUS ENGTX580
Avg FPS: 1027 – Sapphire HD 6970
Avg FPS: 1020 – EVGA GTX 580 SC
Avg FPS: 960 – EVGA GTX 480
Avg FPS: 954 – ASUS HD 6950
Avg FPS: 913 – ATI Radeon HD 5870
Avg FPS: 834 – ASUS EAH6870
Avg FPS: 834 – Sapphire HD 6870
Avg FPS: 706 – ASUS GeForce GTX 560 Ti DirectCU II TOP
Avg FPS: 550 – MSI N460GTX Cyclone 768D5 OC
Avg FPS: 493 – MSI R5770 Hawk
