[VGA Cooler] Accelero XTREME 5970 VGA Cooler Tested with FurMark



Arctic Cooling Accelero XTREME 5970 VGA Cooler

Arctic Cooling Accelero XTREME 5970 VGA Cooler



The guys at X-bit labs have tested the Accelero XTREME 5970, the new VGA cooler from Arctic Cooling, the Switzerland-based VGA cooler maker.

This new VGA cooler for Radeon HD 5970 fixes a cooling issue noticed on reference HD 5970 cooler:

The cooling system of the dual-processor ATI Radeon HD 5970 has the same problems, being only quiet in 2D applications but loud and not very effective in 3D ones. Moreover, it is designed in such a way that the air flow cools one GPU first and then, having heated up, moves to the other GPU, the difference between the temperatures of the two graphics cores amounting to 10° and more as the consequence. The problem of cooling is less urgent for an ordinary user who runs his graphics card at its default frequencies but this difference in temperatures may prevent an overclocker from accelerating his dual-processor HD 5970. The Switzerland-based Arctic Cooling has addressed the issue by releasing a new cooler called Accelero XTREME 5970.

The Accelero XTREME 5970 has been tested with FurMark and according to X-bit labs,
it quietly cools both GPUs very well:

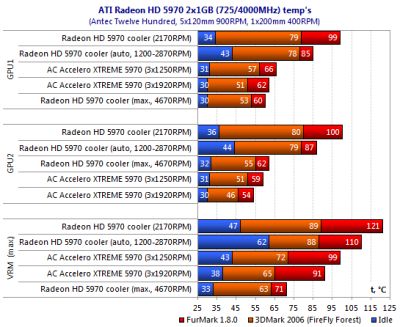

Arctic Cooling Accelero XTREME 5970 VGA Cooler - FurMark - GPU temperatures
source

But due to a too large VRM heatsink, the main heatsink of the Accelero XTREME 5970 presses against the tall VRM heatsink and bends the PCB.

Arctic Cooling Accelero XTREME 5970 VGA Cooler


This desing error causes some differences of temperature between both GPUs when the card is overclocked:

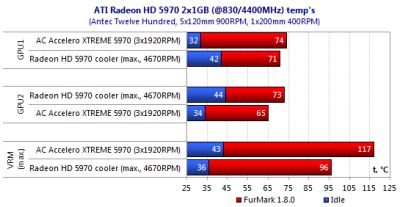

Arctic Cooling Accelero XTREME 5970 VGA Cooler - FurMark - GPU temperatures
source



8 thoughts on “[VGA Cooler] Accelero XTREME 5970 VGA Cooler Tested with FurMark”

  1. fellix

    Failed design. The PCB bending is quite noticeable, IMHO, although not fatal for the continuous board operation, I guess.

  2. WacKEDmaN

    thats one epic fail right there..id stick with the stock HSF at max..the VRMs will be cooler..and lookin at the graphs, the Accelero doesnt really do what it was designed for..

    i mean, the temps have just been swapped around, gpu1 is 2c hotter and gpu2 is 8c cooler than stock@max..throw in the bent PCB and its just not worth it

    the only advantage this has over the stock HSF is the lack of noise!

  3. dddd

    Aren’t we supposed to design smaller and colder devices with the time? Like mobile phones…
    Not the contrary….
    I have the impression with the time the cards are bigger, louder and hotter… that’s what I call progress !

  4. komar

    il fait bien son boulot au contraire

    Im not agree with this review

    infact ive just set up this heatsink on my ASUS 5970 EAH , VRM temps are just fine under BOINC and furmark with both gpu stressed…

    i mean temperature below 125 centigrad celsius on both vrm with ea

  5. komar

    each gpu overclocked to 950 mhz and 5ghz gddr5 on aircooling it’s pretty amazing during summertime ….

    vcore upped to 1.25 and vdimm 1.1 to 1.15V thx to atiovervoltage .

    it’s still stable during 24/24 crunch on boinc…average ambient temp to 25C in PAris Fr.

    performance are better than ares or toxic 5970 ….but the gfx cost me only 460 bucks in france .

    great piece of hardware on my antec twelve hundred supplied with tougpower 1200W .

  6. Michael

    This HSF is installed with 3/4 of the screws attached to the PCB (relative to the stock HSF). Torquing them to much WILL result in results found in this review; however, if careful to not increasing load per screw to 120-125% > stock, then the conclusions found above are NOT replicated.

    Running FurMark on my 5970 with installed cooler ends in MUCH, MUCH better results than listed here..it’s night & day, honestly.

  7. Tarvo

    Basically I just purchased this cooler and everything is fine as the card will not bend if you do it according to the manual and put back the backplate as required. It supports the whole card evenly and does not bend it in any way. Before publishing such falsely composed things think a bit.
