NVIDIA GeForce GTX 460: Specifications and Reviews Available


NVIDIA GeForce GTX 460

NVIDIA GF104 GPU



It’s done, NVIDIA has released a new GeForce: the GeForce GTX 460.

The GTX 460 is based on the new GF104 GPU which is an architecture slightly different from the GF100. In the GF100 arch, each SM (or Streaming Multiprocessor) is made up of 32 SP (or Shader Processor). In the GF104, there are 48 SP per SM. The GF104 has 8 SMs which gives a total of 384 SP. But the GTX 460 comes with only 336 SP because NVIDIA has disabled one SM.

There are two versions of the GTX 460: one with 1024MB of GDDR5 memory and the second with 768MB of GDDR5 memory. The 1024MB comes with a memory bus width of 256 bits whereas the 768MB features a 192-bit bus width (the GTX 465 has a 256-bit bus width and the GTX 480 has a 384-bit bus width).



GeForce GTX 460 specifications

  • GPU: GF104 @ 675MHz / 40nm
  • Shader processors: 336 @ 1350MHz (twice the core clock speed).
  • Streaming multiprocessors: 7
  • Memory: 768MB (192-bit) or 1024MB (256-bit) GDDR5 @ 900MHz (real speed) or 1800MHz (DDR speed) or 3600MHz (QDR speed). More information about graphics memory speed HERE.
  • ROPs: 32 (1024MB version) or 24 (768MB version)
  • Texture units: 56
  • TDP: 160W (1024MB) or 150W (768MB)
  • PCI-Express power connectors: two 6-pin
  • 3D APIs: OpenGL 4.0 and Direct3D 11
  • GPU Computing: OpenCL 1.1, CUDA, DirectCompute and PhysX
  • Price: US199$ (768MB) or US229$ (1024MB)

GeForce GTX 460 and GPU-Z
The number of shader processors is incorrect (224 instead of 336) due to a bug in GPU-Z 0.4.4, bad luck 😉



Performance

GeForce GTX 460 - OpenGL performance under FurMark
OpenGL performance under FurMark (source)



GeForce GTX 460 - relative performance
GeForce GTX 460 – relative performance (source)



Power consumption and temperature with FurMark
According to Guru3D, the GPU temperature varies from 56°C (EVGA GTX 460 768) to 74°C (Palit GTX 460) when stressed with FurMark.

[H]ardOCP gets similar results:

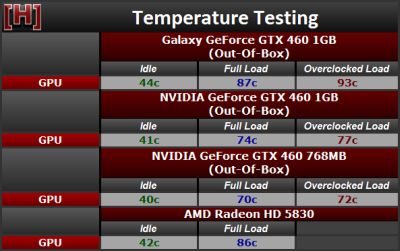

GeForce GTX 460 - GPU temperature with FurMark
GeForce GTX 460 – GPU temperature with FurMark

GeForce GTX 460 - Power consumption with FurMark
GeForce GTX 460 – Power consumption with FurMark

And here are the GPU temperature and power consumption according to AnandTech, still with FurMark:

GeForce GTX 460 - GPU temperature with FurMark
GeForce GTX 460 – GPU temperature with FurMark

GeForce GTX 460 - Power consumption with FurMark
GeForce GTX 460 – Power consumption with FurMark


AnandTech has also temperatures and power consumption when the cards are overclocked HERE.



Reviews





Conclusions
AnandTech:

I think the only way to come across from this launch at all disappointed is when looking at the overall performance levels of the card. The GTX 460 does not completely subdue last year’s $200 cards, and this is part of a larger pattern. DX11 functionality requires additional die space over DX10 functionality, so most of the additional transistors afforded by the transition to 40nm fabrication has been spent on that functionality rather than on improving performance. As a result this year’s $200 cards aren’t a great deal faster than last year’s cards; this isn’t the high-end market where GPU dies (and prices) had room to grow. For everything but the high-end, this year is a feature year and not a performance year.

PC Perspective:

NVIDIA’s new GF104 GPU might just be the savior the company was looking for as it is delivering in all the areas that are required for a successful mainstream graphics product. The GeForce GTX 460 is faster than the Radeon HD 5830, costs about the same, is just as power efficient and has room for overclocking. If you are looking for a new graphics card in the $200 budget, NVIDIA looks to have the best solution available!

TPU:

NVIDIA’s new GeForce GTX 460 is Fermi done right. Whereas the GF100 based products were plagued by excessive power consumption resulting in high temperatures and noise levels, the GTX 460 delivers massive improvements here. Essentially NVIDIA managed to reduce idle power consumption below ATI’s HD 5000 levels, and gaming power consumption to slightly higher but similar levels. This improvement in power consumption trickles down to temperatures and cooler noise helping NVIDIA’s new card to be able to compete there.

Guru3D

At roughly 200 USD/EUR you can expect to get what you pay for, a silent product that will play your games up-to 1600×1200, and in most cases 1920×1200 quite well. What surprised us was the tremendous overclocking potential, pretty much any and every card we tested today has shown a lot of reserve and room for overclocking, and they scale really well while doing so. Any card, even the cheapest you can find, can be pushed to 800 MHz on the core, period.

EVGA GTX 460
EVGA GTX 460 (source)

MSI N460GTX Cyclone
MSI N460GTX Cyclone (source)

Palit GTX 460 1024MB
Palit GTX 460 1024MB (source)

Gainward GTX 460 1024MB
Gainward GTX 460 1024MB (source)
